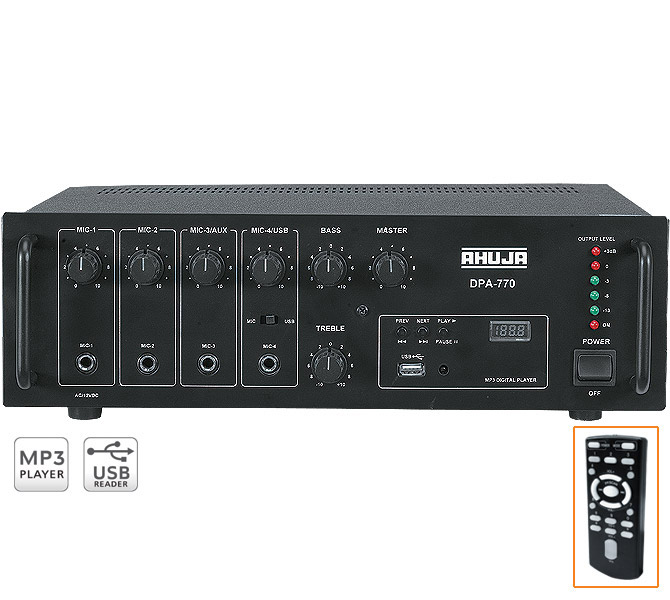

• DPA-770 is a PA amplifier with an inbuilt MP3 Digital Player, making it a versatile multi-application music center. The Digital Player accepts USB drives, and reproduces clear, high quality music. A remote control is provided for controlling the functions of the Digital Player from a distance. This, combined with 4 microphone inputs, 1 Aux input, and provision for multiple speaker connections makes this ideally suitable for a variety of music programmes and public address applications.
  • 4 Mic & 1 Aux Input.
  • Built-in MP3 player with USB reader and remote control.
  • Line Output for connecting to a Booster Amplifier.
  • Active Bass & Treble controls.
  • Instant transfer to DC Power (Car Battery) if AC power fails.
  • 5 LED array for output level monitoring.
 Power Output 100W Max., 75W RMS at 10% THD, 70W RMS at 5% THD
 Input Channels 4×Mic. 0.6mV/4.7k, 1×Aux 100mV/330k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 55dB
 Tone Controls Bass: -10dB, +7dB at 100Hz Treble: -10dB, +7dB at 10kHz
 Outputs Line: 1V/3.5k
 Speaker Outputs 4, 8, 16 & 100V
 Digital Player MP3 Player with USB reader
 Power Supply AC: 220-240V 50/60Hz, DC: 12-14V Car Battery
 Dimensions W385 × H130 × D310 mm
 Weight 9.4kg

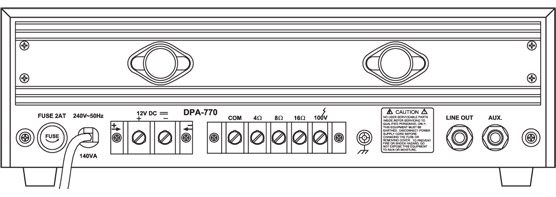

Back view
