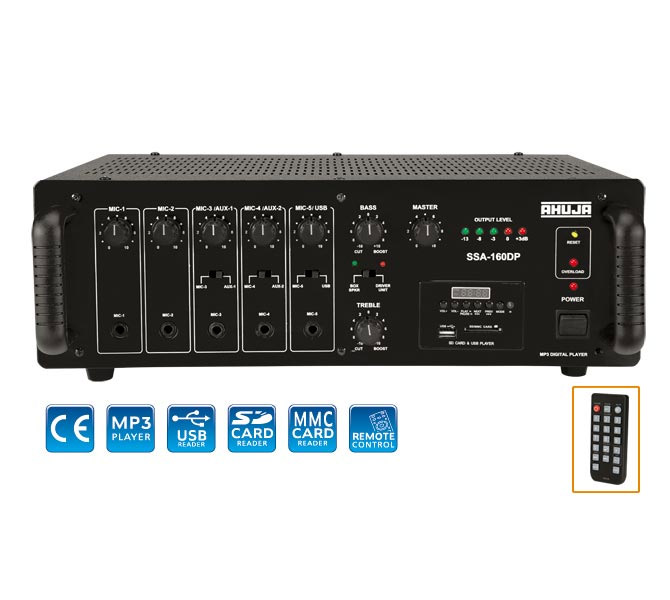

• SSA-160DP is a PA mixer amplifier of rated output 160 Watts. It has an built-in MP3 Digital Player, making it a versatile multi-application music centre. The Digital Player accepts USB drives & SD/MMC cards, reproducing clear, high quality music. A remote control is provided for controlling the functions of the Digital Player from a distance.
  • This, combined with 5 Microphones inputs, 2 Aux inputs, and provision for multiple speaker connections makes this product ideally suited for a variety of music programmes and public address applications.
  • 5 Mic & 2 Aux Inputs.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-160DP to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Provision for instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
  • 5 LED array for output level monitoring.
Power Output 220W Max., 160W RMS at 10% THD
140W RMS at 5% THD, 120W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels 5 × Mic 0.65mV/4.7k, 2 × Aux 100mV/470k 1 × Line 1V/20k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
 Outputs Preamp 200mV/600, Line 1V/1k
 Speaker Outputs 4, 8, 70V & 100V
 Digital Player MP3 Player with USB, SD and MMC Card Reader
 Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
 Power Consumption AC: 300VA DC: 4A
 Dimensions W420 × H155 × D320 mm
 Weight 13.8kg

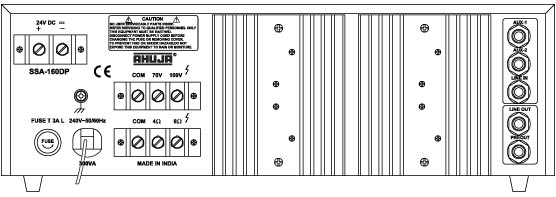

Back view
