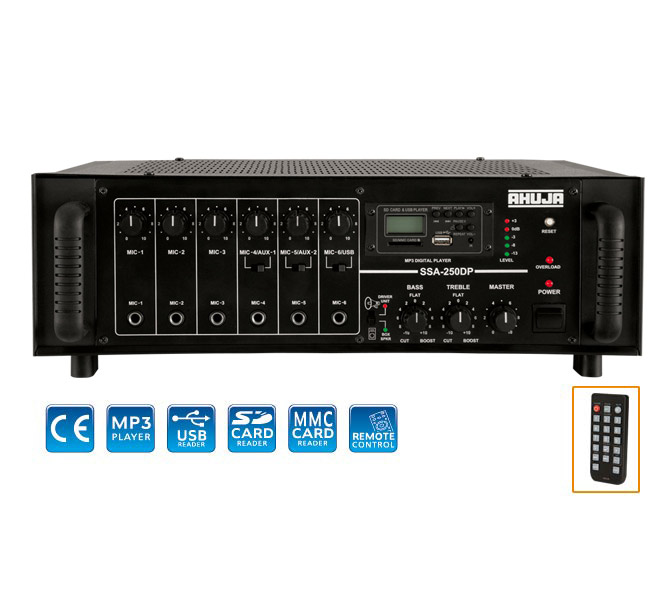

• SSA-250DP is a PA mixer amplifier of rated output 250 watts, fitted with a MP3 Digital Player. The Digital Player features outstanding wide spectrum sound quality, combined with highly useful features like LCD display, remote control, and facilities for REPEAT, PAUSE, VOLUME UP / DOWN etc. It can read USB drives, SD & MMC cards.
  • SSA-250DP has all the other features of the popular SSA-250M model, like 6 Mic inputs, 2 Aux inputs, cut / boost type bass & treble controls, resettable circuit protector, and provision for connecting 24V battery. Facility is given for mixing MP3 playback signal with both Aux and most mic inputs.
  • This is a rugged and highly reliable product, ideally suited for a wide variety of music and public address applications.
  • 6 Mic & 2 Aux Inputs.
  • Built-in MP3 player with LCD display, remote control, for USB, SD/MMC cards.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-250DP to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (2× 12C Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Power Output 300W Max., 250W RMS at 10% THD
220W RMS at 5% THD, 200W RMS at 2% THD
 Output Regulation < 2 dB, no load to full load at 1kHz
 Input Channels 6×Mic 0.65mV/4.7k, 2×Aux 100mV/470k
1×Line 1V/50kW
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
 Output Preamp 200mV/600W, Line 1V/1k
 Speaker Output 4, 8, 70V & 100V
 Digital Player MP3 Player with USB, SD and MMC Card Reader
 Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
 Power Consumption AC: 460VA DC: 6A
 Dimensions W450×H160×D340 mm
 Weight 16.0kg
