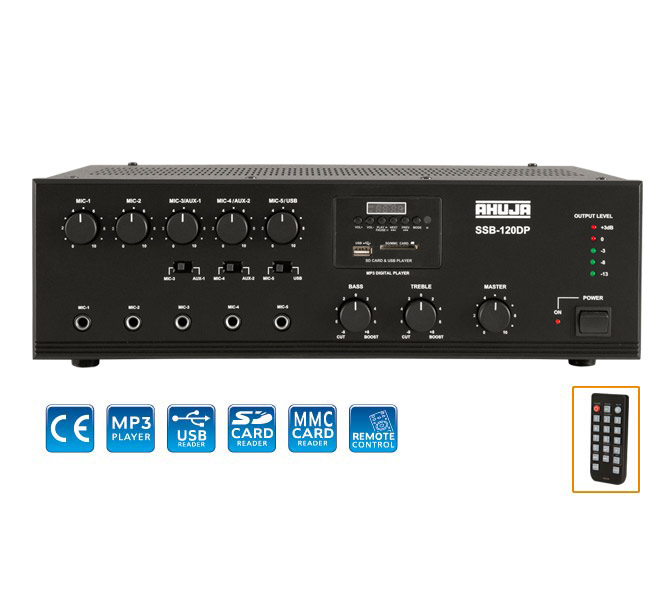

• SSB-120DP is a PA mixer amplifier of rated output 120 Watts. It has an built-in MP3 Digital Player, making it a versatile multi-application music centre. The Digital Player accepts USB drives & SD/MMC cards, reproducing clear, high quality music. A remote control is provided for controlling the functions of the Digital Player from a distance.
  • This, combined with 5 Microphones inputs, 2 Aux inputs, and provision for multiple speaker connections makes this product ideally suited for a variety of music programmes and public address applications.
  • 5 Mic & 2 Aux Inputs.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.
  • Line output for connecting to a Booster Amplifier and Preamplifier Output for recording the programme.
  • Cut and Boost type Bass & Treble controls.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • 5 LED array for output level monitoring.
 Power Output 160W Max., 120W RMS at 10% THD
105W RMS at 5% THD, 95W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels 5×Mic 0.65mV/4.7k, 2×Aux 100mV/470k
1×Line 1V/20k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: ±8dB at 100Hz, Treble: ±8dB at 10kHz
 Outputs Preamp 200mV/600, Line 1V/1k
 Speaker Outputs 4, 8, 16, 70V & 100V
 Digital Player MP3 Player with USB, SD and MMC Card Reader
 Power Supply AC: 220-240V 50/60Hz DC: 12V(12V Car Battery)
 Power Consumption AC: 250VA DC: 5.5A
 Dimensions W420×H135×D295 mm
 Weight 11.0kg
