• 6 Mic, 2 Aux Inputs and CD/Stereo input (L&R)
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.

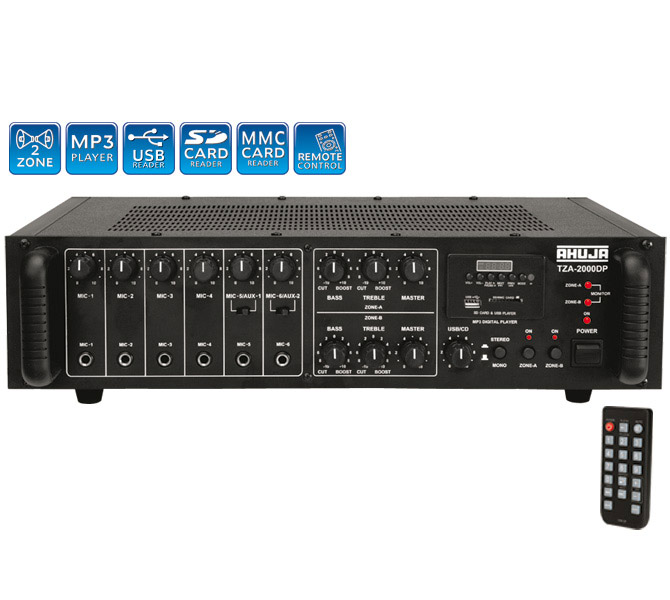

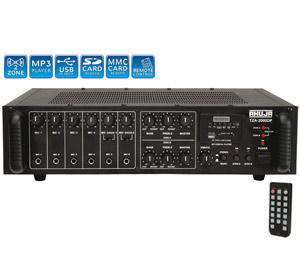

  • TZA-2000DP is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected.
  • User has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone. Both the zones can also be connected to low impedance type speakers.
  • Easy accessibility of DC fuses fitted on rear panel.
  • Instant transfer to DC power (Car Battery) if AC power fails.
Power Output 130W + 130W Max., 100W + 100W RMS at 10% THD
90W + 90W RMS at 5% THD, 80W + 80W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels Mono: 6 × Mic 0.65mV/4.7k,
2 × Aux 100mV/470k,Stereo: L/R 250mV/47k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
 Output Preamp 200mV/600, Line 1V/1k
 Speaker Output 4, 8, 70V & 100V for each zone
 Digital Player MP3 Player with USB, SD and MMC Card Reader
 Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
 Power Consumption AC: 420VA DC: 6.5A
 Dimensions W500 × H140 × D340 mm
 Weight 17.5kg
