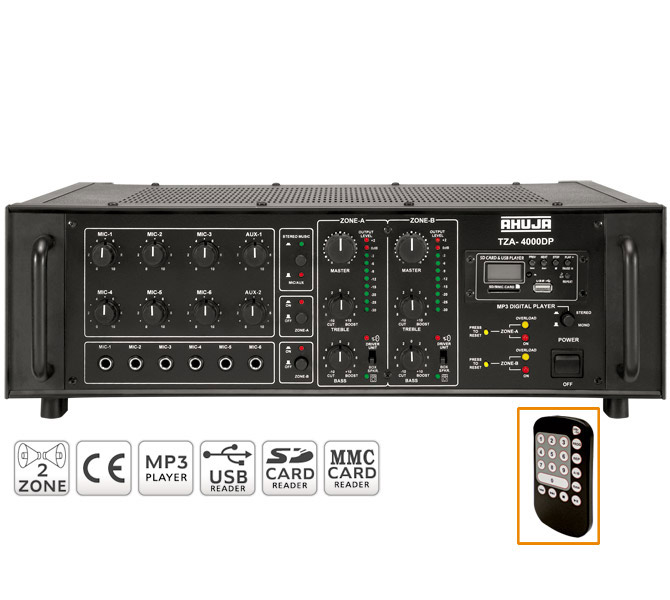

• TZA-4000DP is a multi application 2-Zone PA Amplifier capable of delivering 200+200 Watts output. Ideal for PA Installations in mosque, temples and other religious places, as well as for other indoor and outdoor sound reinforcement applications. This amplifier has a built-in MP3 player with USB, SD and MMC card reader, which is ideal for DJ's and stereo music applications for various gatherings. This amplifier is designed to give clean sound and reliable, trouble free operation under severe climatic conditions. Features includes 6 Mics, 2 Aux. Inputs and RCA jacks at rear for CD/DVD players. In addition, resettable circuit protector, ±10dB Cut/Boost Bass and Treble Controls and AC/24 Volts Battery operation are provided.
  • 6 Mic & 2 Aux Inputs.
  • Built-in MP3 player with USB, SD and MMC card reader. Remote control provided for ease of operation.
  • Stereo/Mono switch to change ambience of MP3 music player.
  • LCD display provided to monitor the track played.
  • 2-Zone operation facilitates connection and operation of two separate groups of speakers simultaneously on Mic/Aux. mode. Ideal for Places of Worship.
  • Line input & output on each zone for connecting to a mixer and booster amplifier respectively. Pre-amplifier output for recording.
  • Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at driver unit position for safer operation of driver units. Zone On/Off facility.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
Power Output 300W + 300W Max., 200W + 200W RMS at 10%THD
180W + 180W RMS at 5% THD,
165W + 165W RMS at 2% THD
Output Regulation 2 dB no load to full load at 1kHz
Input Channels Mic/Aux: 6 x Mic 0.6mV/4.7k, 2 x Aux 100mV/ 470k
Stereo Music Mode: L/R 200mV/100k, Line L/R 1V / 50k
Frequncy Response (amplifier) 50 – 15000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Preamp 200mV/600W, Line 1V/1k
Speaker Outputs 4, 8, 70V & 100V for each zone
Digital Player MP3 Player with Remote Control
(USB, SD & MMC Cards can be used)
Power Supply AC: 220 - 240V 50 / 60Hz DC: 24V (2 × 12V Car Battery)
Power Consumption AC: 700VA DC: 9A
Dimensions W510 × H172 × D385 mm
Weight 24.2kg

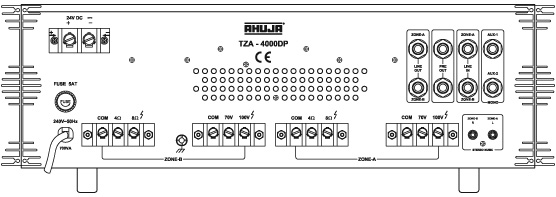

Back view
