• Outstanding sound quality. Full spectrum bandwidth entirely suitable for use with the highest quality box speaker systems.
  • Designed specially for use in music programmes, this amplifier provides unmatched reliability & ruggedness with the very best sound reproduction. Ideally suited for DJs.

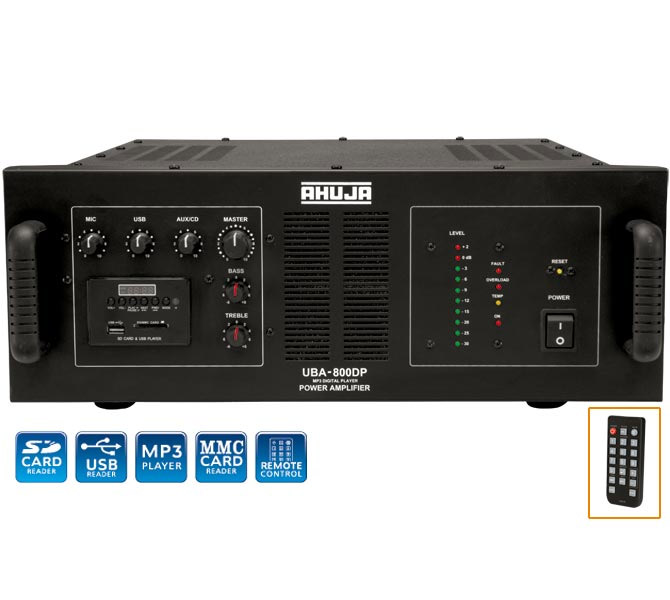

  • UBA-800DP is a 800 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
  • The amplifier has cut and boost type tone controls which provides precise and accurate tonal setting of the programme.
  • Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
  • Built-in Mp3 Digital Player with remote control.
  • Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
  • The amplifier has built-in protection against over voltage in AC mains supply while operating on a Genset.
  • Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
Power Output 1050W RMS Max. 800W RMS at 10%THD
750W RMS at 5% THD 700W RMS at 2% THD
 Output Regulation 2dB no load to full load at 1kHz
 Input Channels 1×Mic 1mV/4.7k (Mic source impedance 50 to 1k)
1×Aux 100mV/470k 1×Aux 250mV/20k
1×CD 250mV/20k Line Input 1V/10k
 Digital Player MP3 Player with Remote Control (USB, SD and MMC Card Reader)
 Frequency Response 50Hz–18,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass (100Hz) : ± 8dB Treble (10kHz) : ± 8dB
 Line Output 1V/1k
 Output Taps for Speaker Matching 2, 4 & 8
 Power Supply AC: 220-240V 50/60Hz
 Protections 2 × 25 Amp fuse in ± DC supply 8 Amp circuit breaker in AC mains
Protected against high AC mains voltage, overload and temperature
 AC Power Consumption 1500VA
 Dimensions W482 × H186 × D530 mm
 Weight 32.0 kg

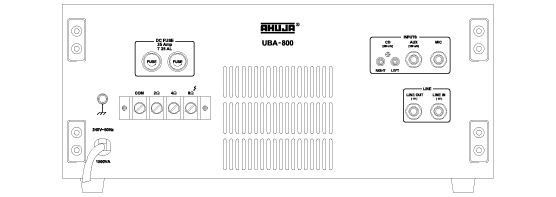

Back view
