• Super Power Two Zone PA Booster Amplifier.

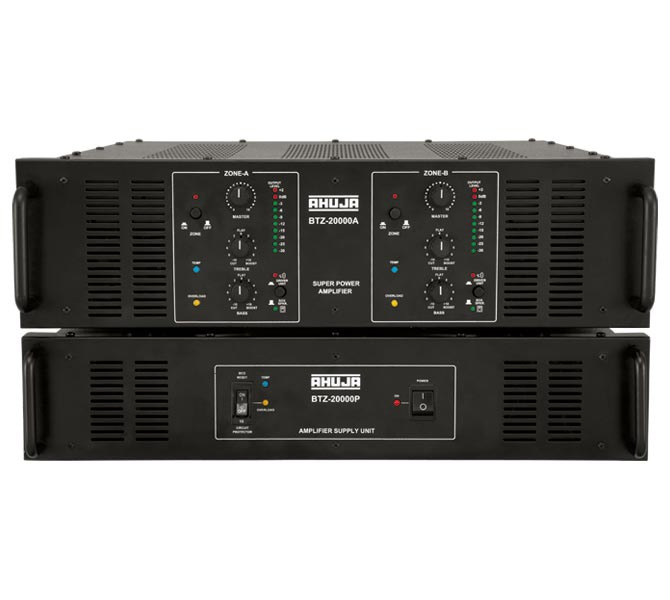

  • The system consists of two part BTZ-20000P and BTZ-20000A. Both parts are interconnected through a specially designed connecting cable.
  • The amplifier has One Mono (200mV) input through mono phone jacks, One Mono (1V) Balanced input through stereo phone jack and XLR connector, one stereo input (200mV) through RCA socket (L/R) and one stereo 1V input (L/R) through stereo phone jacks and XLR connector. Thus, it can be used for stereo music reproduction as well as mono.
  • Balanced input is useful when using long connecting cables, and can help in reducing stray pickup noise.
  • Magnetic hydraulic circuit protector for more precise overload protection.
Power Output 1000W + 1000W RMS at 10% THD Rated
900W + 900W RMS at 5% THD, 820W + 820W RMS at 2% THD
Output Regulation 2 dB, no load to full load at 1kHz
Input Channels Mono 200mV / 100k unbalanced input through Mono Phone Jack,
1V/50k Balanced input through stereo Phone Jack and XLR Connector
Stereo Left Channel / A: 200mV / 100k (through RCA Socket), Right Channel / B: 200mV / 100k (through RCA Socket)
Line Left Channel / A: 1V / 50k, Right Channel / B: 1V/50k (Both Balanced input through Stereo Phone Jack & XLR connector)
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±8dB at 100Hz, Treble: ±8dB at 10kHz
Output Mono: 200mV/100k, Stereo: L/R 1V/1k
Speaker Outputs 2, 4, 8, 70V & 100V for each zone
Power Supply AC: 220-240V 50/60 Hz
Power Consumption AC: 2800VA
Dimensions BTZ-20000P W560 × H120 × D530 mm,
BTZ-20000A W560 × H165 × D530 mm
Weight BTZ-20000P 25.0kg, BTZ-20000A 34.0kg approx.
