• Stereo Music Operation for DJ programmes.
  • Facilitates connection and operation of two separate groups of speakers simultaneously.
  • 200mV unbalanced & 1V balanced inputs are provided for connecting with mixers in DJ applications.
  • Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Bar Graph Signal Display.
Power Output 300W + 300W Max., 250W + 250W RMS at 10% THD
220W + 220W RMS at 5% THD, 200W + 200W RMS at 2% THD
Output Regulation 2 dB, no load to full load at 1kHz
Input Channels Mono 200mV/100k & 1V/50k
Stereo L/R 200mV/100k, Line L/R 1V/50k
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Mono 200mV, Line L/R 1V/1k
Speaker Outputs 4, 8, 70V& 100V for each zone
Power Supply AC: 220-240V 50/60 Hz DC: 24V (2×12V Car Battery)
Power Consumption AC: 1000VA DC: 12A
Dimensions W510 × H172 × D385 mm
Weight 30.0kg

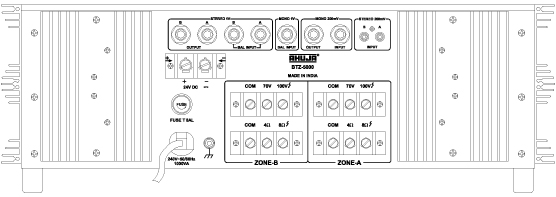

Back view
