• 6 Mic & 2 Aux Inputs.
  • Preamplifier output for connecting to a Booster Amplifier and for recording the programme.
  • Bass & Treble Controls.
  • TZA-1500 permits connecting 100V (LMT) type speakers to one Zone and low impedance type speakers to other Zone without causing overloading and over heating.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
Power Output 100W + 100W Max., 80W + 80W RMS at 10% THD
  70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD
Output Regulation 2 dB, no load to full load at 1kHz
Input Channels 6 × Mic 0.6mV/4.7k, 2 × Aux 100mV/470k
Frequency Response 65-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Outputs Preamp 200mV/600
Speaker Outputs 4, 8, 70V & 100V for each zone
Power Supply AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)
Power Consumption AC: 300VA DC: 6A
Dimensions W460 × H155 × D310 mm
Weight 14.2kg

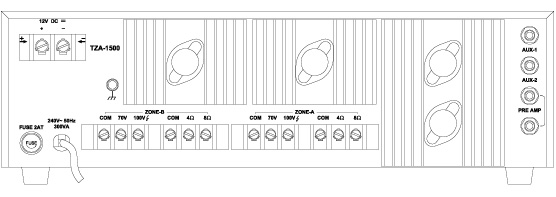

Back view
