• 6 Mic & 2 Aux Inputs.
  • ‘Stereo’ Music Operation for DJ programmes.
  • Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
  • Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
  • Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
Power Output 300W + 300W Max., 200W + 200W RMS at 10% THD
  180W + 180 RMS at 5% THD, 165W + 165W RMS at 2% THD
Output Regulation 2 dB, no load to full load at 1kHz
Input Channels Mono 6 × Mic 0.6mV/4.7k, 2 × Aux 100mV/470k
  Stereo L/R 200mV/100k, Line L/R 1V/50k
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Preamp 200mV/600, Line 1V/1k
Speaker Outputs 4, 8, 70V & 100V for each zone
Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption AC: 700VA DC: 9A
Dimensions W510 × H172 × D385 mm
Weight 24.2kg

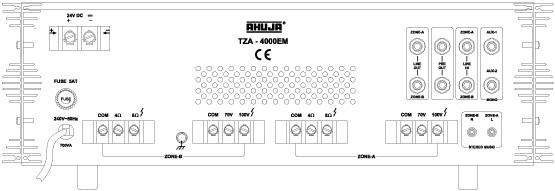

Back view
