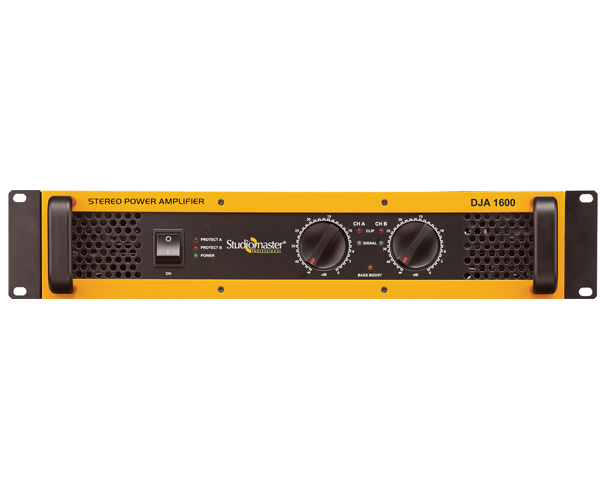

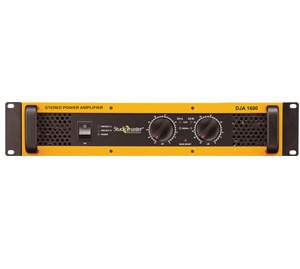

Studiomaster DJA 1600 DJA Series EV Radios Public Address Systems,Playback Systems

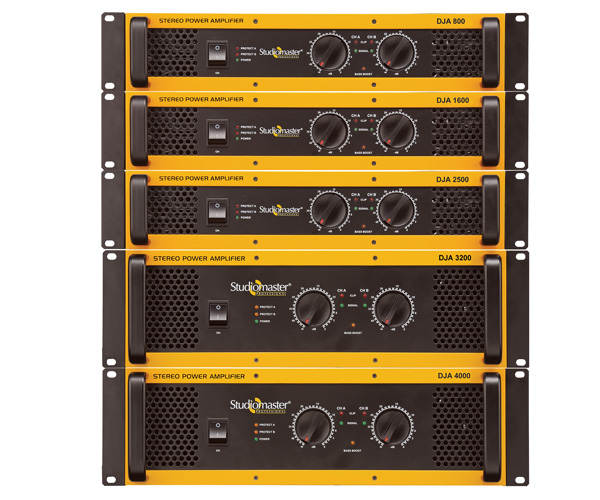

The DJA Series power amplifiers are designed to give clean, dynamic power with the legendary Studiomaster Professional sound quality and reliability that pros depend on.

Rugged & Reliable Professional Stereo Power Amplifier.
Input: Balanced XLR & 1/4” Jack.

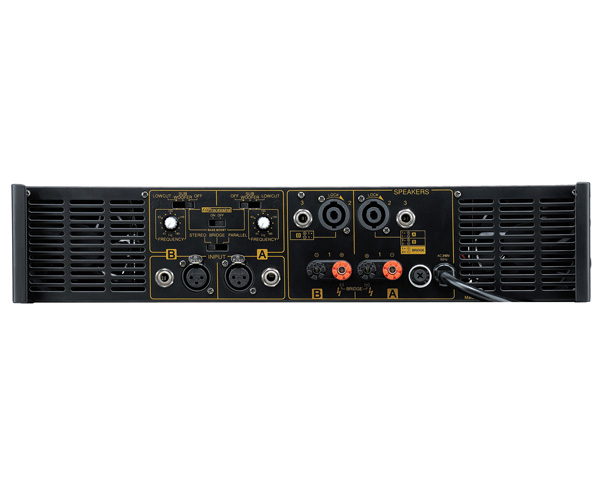

EQ Processing, Low Cut, Subwoofer selection options on rear panel.
Stereo, Bridge & Parallel mode selection switch.
Protection: Temperature ,DC Short Circuit.
Large cooling Fans.
LED Indicators on front panel for power, Signal, Clip, bass boost & Protect.
Mains voltage operation 220VAC-240VAC as well as low voltage operation (150VAC).
Output: Speakon & Binding Post Connectors.
19” rack mountable.

Power Output
4 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 550 W
4 Ω (EIA), 1kHz, 1%THD	2 x 800 W
8 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 350 W
8 Ω (EIA), 1kHz , 1%THD	2 x 560 W
Bridged Mode
8 Ω (True RMS), 20Hz-20kHz, 1% THD	1100 W
8 Ω (EIA), 1kHz , 1%THD	1600 W
Damping factor	> 350 :1 (8 Ω)
Frequency Response	20Hz - 20kHz (-3dB)
Protection Devices	Temperature, DC, Short Circuit
Input Connector (Per Channel)	XLR, 1/4” TRS Jack
Output Connector (Per Channel)	Speakon / Binding Posts / 6.3mm Jack
Dimensions (W x D x H)mm	482 x 456 x 88 (2U)
Net Weight (Kgs.)	15
