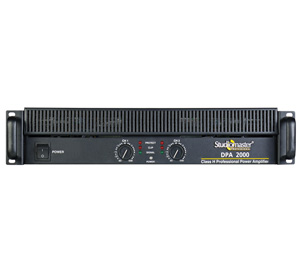

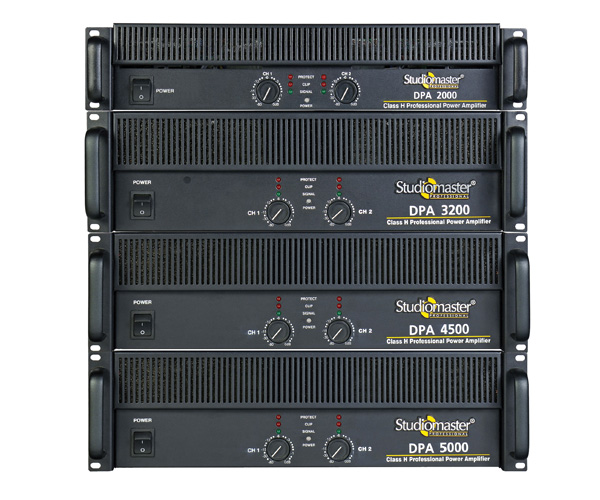

Studiomaster Professional DPA Series power amplifier represents state-of-the-art professional quality & performance at an affordable price. Perfectly suited for a wide range of sound reinforcement applications including Professional touring, performing musicians, & mobile entertainers.

  • Professional high-power amplifiers.
  • Balanced / unbalanced inputs signal through parallel XLR connector in both channels.
  • Low THD & high damping factor for excellent sound quality.
  • Fast recovery design for lower distortion if clipping occurs.
  • Selectable slide switch for stereo, parallel & bridge mono amp modes.
  • Selectable sensitivity slide switch for ( 0.775V , 1V or 1.4V).
  • Selectable slide switch for ground lift, Low cut & HF Limiter
  • Signal and Clip LED indicators to monitor performance.
  • Two variable speed fans.
  • Front mounted detent gain controls for easy access.
  • Indicators : Power On, Signal, Limiter, protect, Bridge
  • Cooling: T win tunnel cooling fan with front - back air flow
Power Output
2 Ω (True RMS),20Hz-20kHz,1% THD 2 x 1040 W
2 Ω (EIA), 1kHz , 1%THD 2 x 2250 W
4 Ω (True RMS),20Hz-20kHz,1% THD 2 x 780 W
4 Ω (EIA), 1kHz , 1%THD 2 x 1380 W
8 Ω (True RMS),20Hz-20kHz,1% THD 2 x 520 W
8 Ω (EIA), 1kHz , 1%THD 2 x 755 W
Bridged Mode
4 Ω (True RMS),20Hz-20kHz,1% THD 2080 W
4 Ω (EIA), 1kHz , 1%THD 4500 W
8 Ω (T rue RMS),20Hz-20kHz,1% THD 1560 W
8 Ω (EIA), 1kHz , 1%THD 2760 W
Damping factor (8 Ω) > 200 :1
Frequency Response 20Hz - 20kHz (±0.5dB)
Protection Devices DC, Short Circuit, Over heat, Soft-Start, Clip Limit,    Over load
Input Connector (Per CH.) XLR
Output Connector (Per CH.) Speakon & Binding post
Dimensions (WxDxH)mm 483 x 455 x 88 (2U)
Net Weight (Kgs.) 27.6

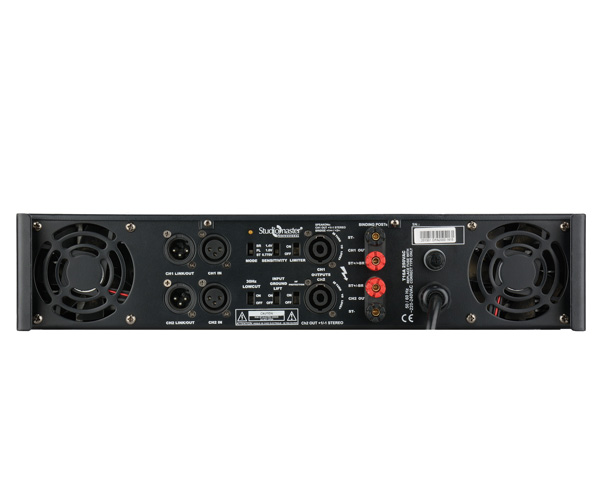

Back view
