The Studiomaster Professional Arena Series are a range of amplifiers, which boast of excellent sound quality, road worthy toughness & reliability, as well as incredible power.

  • Professional High-power Amplifiers.
  • Balanced XLR Input & Link Out.
  • High current torroidal transformer.
  • Overdrive, DC, Short circuit, High temperature protections.
  • Switchable modes (Stereo, Parallel & Bridge with indication).
  • Sensitivity, Low cut, Limiter, Ground/Lift selection switches.
  • Each channel LED indication for Power, Signal, Clip & Protect.
  • Temperature controlled fans with front to back airflow .
  • Main voltage operation from 180V to 240V .
  • Output: Speakon connections.
Power Output
2 Ω (True RMS), 20Hz-20kHz, 1% THD 2 x 1000 W
2 Ω (EIA), 1kHz , 1%THD 2 x 1800 W
4 Ω (True RMS), 20Hz-20kHz, 1% THD 2 x 800 W
4 Ω (EIA), 1kHz , 1%THD 2 x 1250 W
8 Ω (True RMS), 20Hz-20kHz, 1% THD 2 x 500 W
8 Ω (EIA), 1kHz , 1%THD 2 x 755 W
Bridged Mode
4 Ω (True RMS), 20Hz-20kHz, 1% THD 2000 W
4 Ω (EIA), 1kHz , 1%THD 3600 W
8  Ω  (T rue RMS), 20Hz-20kHz, 1% THD 1600 W
8  Ω  (EIA), 1kHz , 1%THD 2500 W
Damping factor (8  Ω) > 200 :1
Frequency Response 20Hz - 20kHz (-3dB)
Protection Devices Temperature, DC, Short Circuit, Soft-Start, Thermal Power Transformer
Input Connector (Per Channel) XLR
Output Connector (Per Channel) Speakon Connector
Dimensions (W x D x H)mm 482 x 432 x 88 (2U)
Net Weight (Kgs.) 21

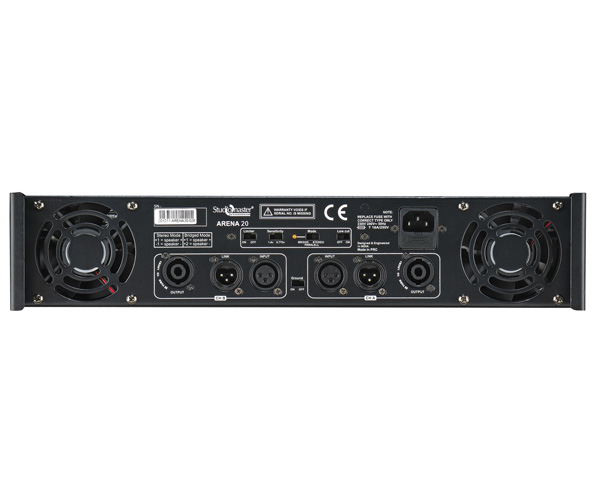

Back view
