• Designed for use in a wide variety of PA applications and DJ performances.
  • UBA-1300 is a 1300 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
  • The amplifier has bass and treble controls which enable precise and accurate tonal setting of the programme.
  • The Sub switch provided facilitates use with sub woofer.
  • Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
  • Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
  • The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
  • Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
  • 2 speaker matching provided in addition to 4 & 8 .
 Power Output 1650W RMS Max.,1300W RMS at 10%THD
  1150W RMS at 5% THD1050W RMS at 2% THD
 Output Regulation ≤2dB, no load to full load at 1kHz
 Input Channels 1 × Mic 1.5mV / 4.7k, 1 × Aux 100mV / 470k, 1 × Aux 250mV / 20k,
  1 × CD 250mV / 20k, 1 × Line 1V / 10k unbalanced, 20k balanced
 Frequency Response 50Hz–18,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass (100Hz) : ± 8dB
  Treble (10kHz) : ± 8dB
 Speaker Outputs 2, 4 & 8
 Power Supply AC: 220-240V 50/60Hz
 Protections 2 × 30 Amp fuse in ± DC supply 12 Amp circuit breaker in AC mains
  Protected against high AC mains voltage, overload & temperature
 Power Consumption 2400 VA
 Dimensions W500 × H210 × D577 mm
 Weight 49.0kg

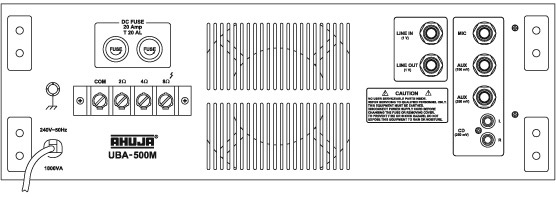

Back view
