• Designed for use in a wide variety of PA applications and DJ performances.

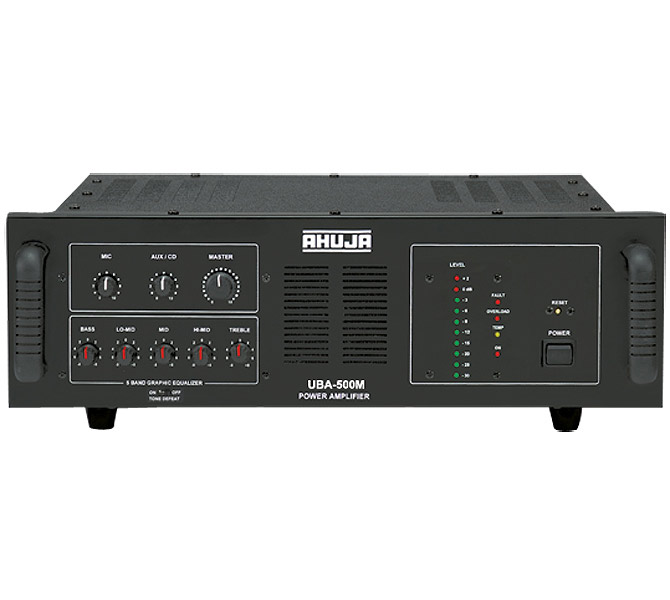

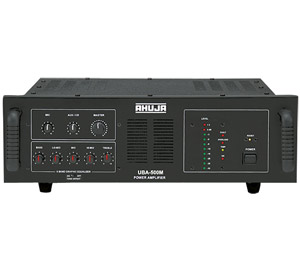

  • UBA-500M is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
  • The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
  • Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
  • Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
  • The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
  • Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
  • 2Ω speaker matching provided in addition to 4 & 8Ω.
 Power Output 650W RMS Max., 500W RMS at 10%THD
475W RMS at 5% THD 450W RMS at 2% THD
 Output Regulation 2dB, no load to full load at 1kHz
 Input Channels 1 × Mic 1mV / 4.7k,
1 × Aux 100mV / 470k, 1 × Aux 250mV / 20k
1 × CD 250mV / 20k, 1 × Line 1V / 10k
 Frequency Response 50Hz–18,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass (100Hz) : ± 8dB
Lo-Mid (315Hz) : ± 8dB
Mid (1kHz) : ± 8dB
Hi-Mid (3.1kHz) : ± 8dB
Treble (10kHz) : ± 8dB
 Line Output 1V/1k
 Speaker Output 2, 4  & 8
 Power Supply AC: 220-240V 50/60Hz
 Protections 2 × 20 Amp fuse in ± DC supply 5 Amp circuit breaker in AC mains
Protected against high AC mains voltage, overload & temperature
 Power Consumption 1000 VA
 Dimensions W482 × H166 × D435 mm
 Weight 23.5kg

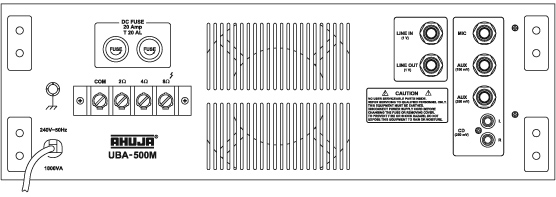

Back view
