• 8 Mic & 3 Aux Inputs.
  • 8 Channel Mixer and 5 Band Graphic Equalizer (± 8dB at 100Hz, 300Hz, 1kHz, 3kHz & 10kHz.) Ideal for use in a medium size auditorium.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting MXA-3500 to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
Power Output 450W Max., 350W RMS at 10% THD
  320W RMS at 5% THD, 300W RMS at 2% THD
Output Regulation 2 dB, no load to full load at 1kHz
Input Channels 8 × Mic 0.8mV/4.7k, 2 × Aux 200mV/470k
  1 × Aux 100mV/470k, 1 × Line 1V/50k
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass & Treble ±6dB at 100Hz & 10kHz for Mic 1 - 6 & Aux 1&2
Outputs Preamp 200mV/600, Line 1V/1k
Speaker Outputs 4, 8, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 36V (3 × 12V Car Battery)
Power Consumption AC: 750VA DC: 8A
Dimensions W510 × H172 × D385 mm
Weight 21.3kg

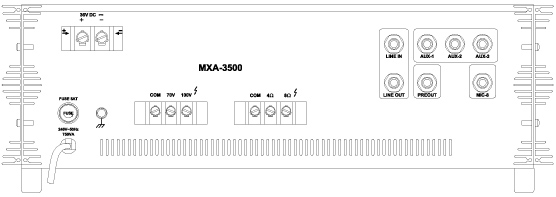

Back view
