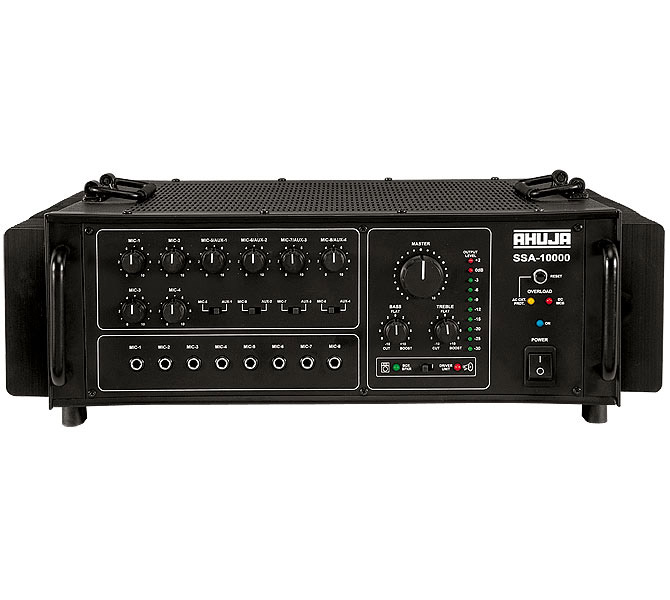

• SSA-10000 is a multi application high Power PA Amplifier capable of delivering 1000 Watts, ideal for driving high power sub-woofers as well as large PA Installations involving large number of speakers. This amplifier is designed to give high power, clean sound and reliable, trouble free operation under extreme climatic & weather conditions. Features include 8 microphone and 4 aux inputs (one of which is through RCA jacks and specially meant for CD/DVD Players). In addition resettable circuit protector, ±10dB Cut/Boost Bass/Treble controls and AC/48V battery operation are provided.
  • 8 Mic & 4 Aux Inputs.
  • AUX-4 input is through RCA Socket, specially for connecting CD/DVD Player.
  • Line Input & Output provided for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
  • Cut-boost type Bass/Treble controls.
  • Box Speaker/Driver Unit selector switch. Bass boost can be defeated at Driver Unit position for safer operation of driver units.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • 10 LED Bar Graph Signal Level Display.
Power Output 1350W Max., 1000W RMS at 10% THD
850W RMS at 5% THD, 800W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels 8 × Mic 0.8mV/4.7k, 3 × Aux 100mV/50k
1 × Aux 250mV/50k
1 × Line 1V/50k
 Frequency Response 50 – 15000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass:±8dB at 100Hz Treble:±8dB at 10kHz
 Outputs Preamp 200mV/600, Line 1V/1k
 Speaker Outputs 2 & 4, 70V & 100V
 Power Supply AC:220 - 240V 50/60Hz / DC:48V (4 × 12V Car Battery)
 Power Consumption AC:1600VA / DC:12A
 Dimensions W540 × H185 × D510 mm
 Weight 42.0Kg

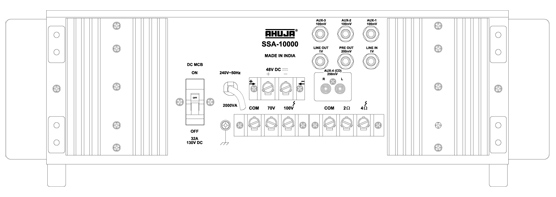

Back view
