• 7 Mic & 2 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-5000EM to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
 Power Output 750W Max., 500W RMS at 10% THD
  450W RMS at 5% THD, 415W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels 7 × Mic 0.8mV/4.7k, 2 × Aux 100mV/470 k
  1 × Line 1V/50k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
 Outputs Preamp 200mV/600, Line 1V/1k
 Speaker Outputs 4, 8, 70V & 100V
 Power Supply AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
 Power Consumption AC: 1000VA DC: 8A
 Dimensions W510 × H172 × D385 mm
 Weight 26.7kg

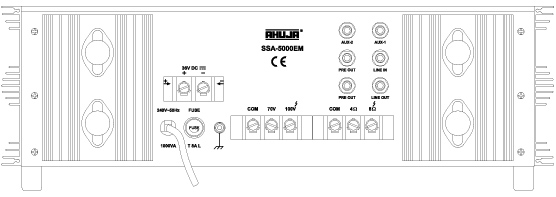

Back view
