• SSA-7000 is a multi application high Power PA Amplifier capable of delivering 700 Watts, ideal for driving high power sub-woofers as well as large PA Installations involving large number of speakers. This amplifier is designed to give high power, clean sound and reliable, trouble free operation under extreme climatic & weather conditions. Features include 7 microphone and 3 aux inputs (one of which is through RCA jacks and specially meant for CD/DVD Players). In addition resettable circuit protector, ±10dB Cut/Boost Bass/Treble controls and AC/36V battery operation are provided.
  • 7 Mic & 3 Aux Inputs.
  • AUX-3 input is through RCA Socket for connecting CD/DVD Player.
  • Line Input & Output for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
  • Box Speaker/Driver Unit selector switch - Bass boost can be defeated at Driver Unit position for safer operation of driver units.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Bar Graph Signal Display.
Power Output 950W RMS Max. 700W RMS at 10%THD
600W RMS at 5% THD 570W RMS at 2% THD
 Output Regulation 2 dB no load to full load at 1kHz
 Input Channels 7×Mic. 0.8mV/4.7k  (Mic source impedance 50to 1k)
1xAux. 250mV/50k(CD/Aux-3)
2×Aux. 100mV/470k
Line Input 1V/50k
 Frequency Response 50 – 15000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: ±10dB at 100Hz Treble: ±10dB at 10kHz
 Speaker Outputs 2, 4, 70V & 100V
 Power Supply AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
 Power Consumption AC: 1500VA DC: 11A
 Dimensions W510 × H185 × D400 mm
 Weight 38.0kg

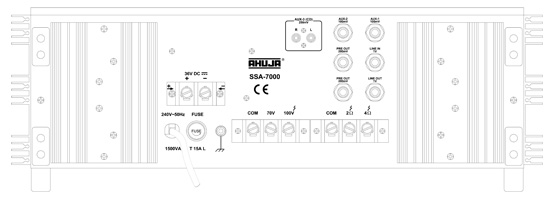

Back view
