• 5 Mic, 3 Aux & 1 Telephone Inputs.
  • 2 Balanced Mic Inputs through Combo (Female XLR socket cum ¼” Stereo Phone Jack) connectors.
  • Mic-1 and Telephone Input provided with Voice Operated Priority over all other programmes.
  • Preamplifier and Line Output for recording the programme and connecting to a booster amplifier.
  • Line Input for connecting an external audio mixer or permitting PAM-3001 to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • 19” Rack mountable.
 Power Output 415W Max., 325W RMS at 10% THD
  300W RMS at 5% THD, 275W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels 3 × Mic 0.65mV/4.7k, 2 × Mic 1.0mV/2k, 1 × Line 1V/50k,
  2 × Aux 100mV/470k, 1 × Aux 250mV/470k,
  1 × Telephone 150mV/10k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
 Outputs Preamp 200mV/600, Line 1V/1k
 Speaker Outputs 4, 8, 70V & 100V
 Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
 Power Consumption AC: 600VA DC: 7A
 Dimensions W482 × H133 × D390 mm
 Weight 19.8kg

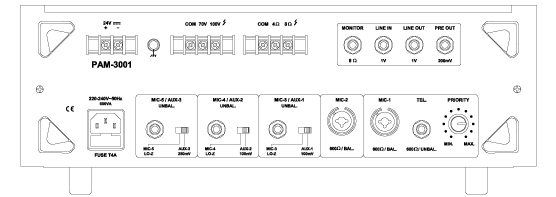

Back view
