• 2 Mic & 1 Aux Input.
  • Cut type tone control.
  • 2 POWER SOURCE amplifier: AC mains and 12V DC (Car Battery).
  • Provision of automatic changeover from AC to Battery operation ensuring continuity of program.
  • Protection against wrong battery polarity.
 Power Output 30W RMS Max., 25W RMS at 10% THD
 Input Channels 2 × Mic 1.0mV / 4.7k,
 Frequency Response 150-10,000Hz ±3dB
1 × Aux 100mV / 470k1 × Aux 100mV / 470k
 Signal to Noise Ratio 60dB
 Tone Controls -10dB at 10kHz
 Speaker Outputs 4, 8, 16 & 100V
 Power Supply AC: 220-240V 50/60Hz DC: 12V (Car Battery)
 Power Consumption AC: 80VA DC: 1.2A
 Dimensions W180 × H80 × D190 mm
 Weight 4.0kg

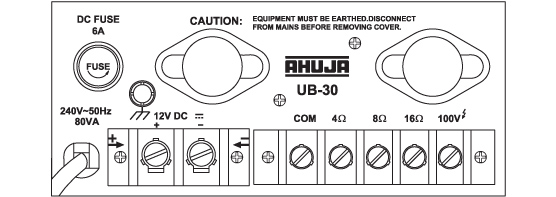

Back view
