• 5 Mic & 2 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Bass & Treble Tone Controls cut type.
Power Output 130W Max., 100W RMS at 10% THD
  90W RMS at 5% THD, 80W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels 5 × Mic 0.65mV/4.7k, 1 × Aux 50mV/470k
  1 × Aux 150mV/470k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
 Outputs Preamp 200mV/600, Line 1V/1k
 Speaker Outputs 4, 8, 16, 70V & 100V
 Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
 Power Consumption AC: 220VA DC: 3A
 Dimensions W420 × H135 × D290 mm
 Weight 10.5kg

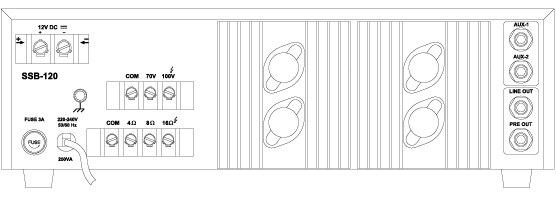

Back view
