• 4 Mic & 1 Aux Inputs.
  • Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Cut type Bass & Treble Controls.
 Power Output 90W Max., 65W RMS at 10% THD
  60W RMS at 5% THD, 50W RMS at 2% THD
 Output Regulation 2 dB, no load to full load at 1kHz
 Input Channels 4 × Mic 0.65mV/4.7k, 1 × Aux 100mV/470 k
 Frequency Response 50-15,000Hz ±3dB
 Signal to Noise Ratio 60dB
 Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
 Outputs Preamp 200mV/600
 Speaker Outputs 4, 8, 16 & 100V
 Power Supply AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)
 Power Consumption AC: 160VA DC: 3A
 Dimensions W350 × H120 × D265 mm
 Weight 7.0kg

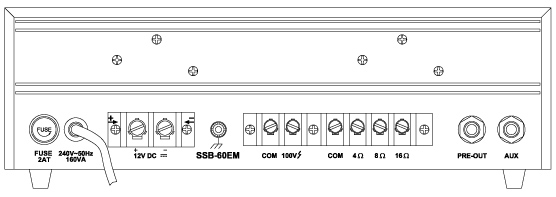

Back view
