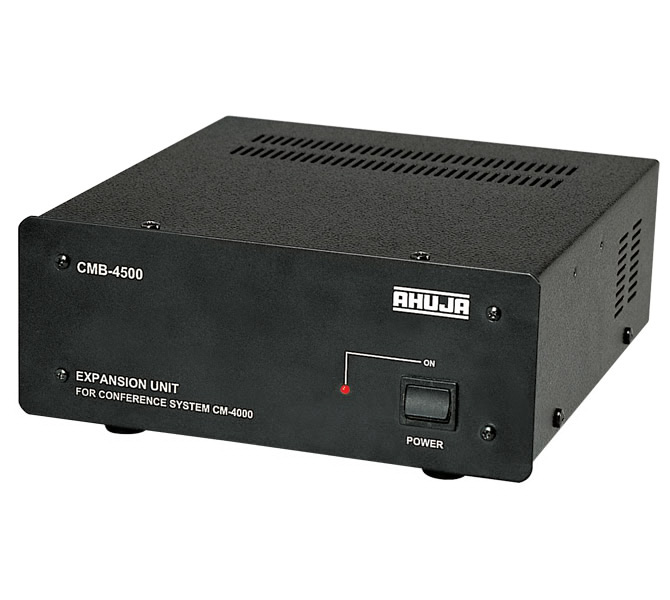

• For large installations, the conference system can be expanded by using Conference Expansion Unit CMB-4500.
  • CMB-4500 is a passive unit for adding more conference units to the system.
  • CMB-4500 also provides interconnection with the Central Amplifier CMA-4400.
  • It works on 220-240V AC mains as well as 24V car battery.
Output (at B1 & B2) 17.5V DC/3A Max
Power Requirement AC: 220-240V (50/60Hz) DC: 24V Car Battery
Power Consumption 140VA
Protections AC Fuse 1 × 2 Amp DC Fuse 1 × 10 Amp
Dimensions W228×H88×D260 mm
Weight 3.40kg
