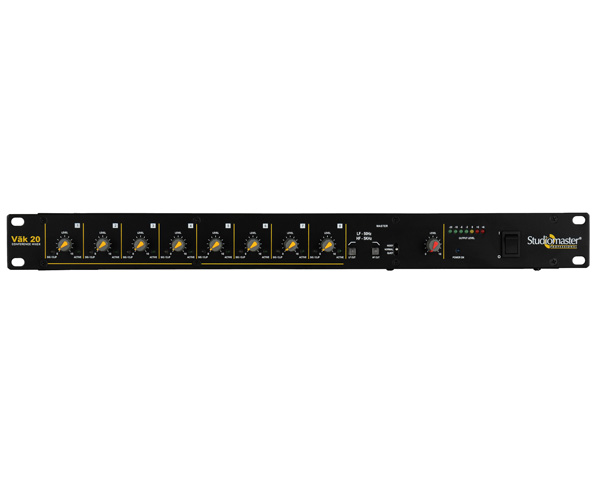

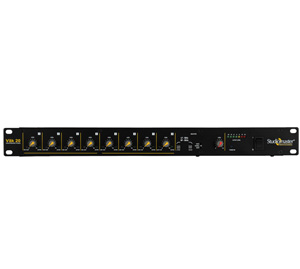

The VaK 20 is a unique dedicated conference mixer that allows any standard microphone and other inputs to be connected into a conference set-up !

  • 8 Mic / Line channel Mixer.
  • Signal clip indicator & active LED on each channel.
  • Delegate or Chairman selectable options on each channel.
  • Individual phantom on each channel.
  • Each channel has a combo jack Input connector.

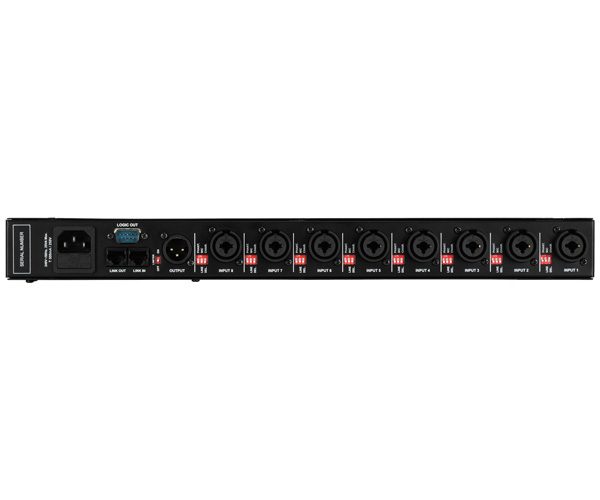

Output Section

  • Balanced XLR output.
  • Limiter switch on the output.

Linking Section

  • Link In / Out to daisy chain as many VāK 20’s required.

Control Section

  • NOM: Maximum 6
  • Logic out to control cameras / speakers.

Master Section

  • Level Control.
  • Switch for Noisy, Normal, Quiet settings for ambient noise  compensation.
  • LF / HF cut switches.
  • Bar-graph with 7 LED’s
Input Impedance ( Mic / Line ) 4KΩ / 30KΩ
Output Impedance 200 Ω
Nominal Input Level ( Mic / Line ) -61 dBu / -17 dBu
Nominal Output Level 0 dBu
Frequency Response 20 Hz - 20kHz @ -3dB
Selectable Filter LF Cut 50Hz / HF Cut 8KHz
Microphone Phantom +48 V DC
Power Supply 240V AC, 100mA, max
Dimensions (W x D x H)mm 482 x 152 x 51 (1U)
Net Weight (Kgs.) 2.5
