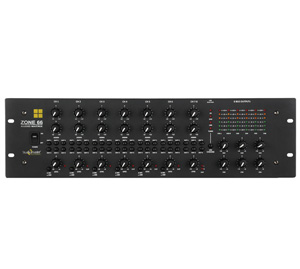

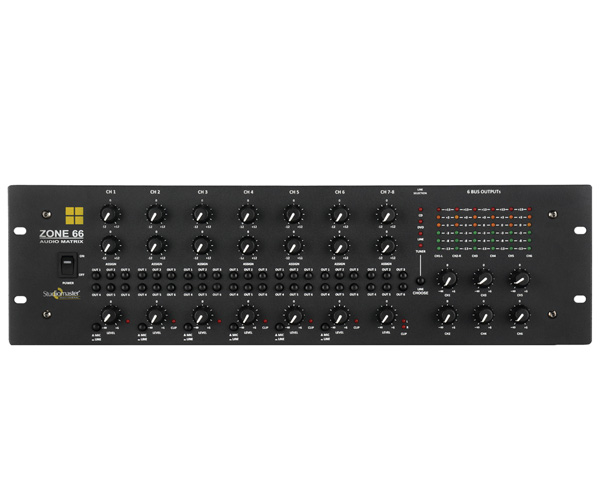

The Studiomaster Professional Zone 66 is a 6 zone paging system designed for a variety of environs such as Factories, Hospitals, Schools, etc.

  • 6 Mic/Line inputs switchable to 6 outputs with  independent Gain control, 2 band equalizer, Level control &CLIP led.
  • One Stereo channel with 4-way input selector Gain control, 2 band equalizer, Level control & CLIP led.
  • Matrix assignment : Each input channel can be assigned to any combination of output(s).
  • Microphone input with low noise preamplifier & +48V Phantom voltage selection switch.
  • 6 mono outputs with level controls & 6-digit LED level meter.
Input Gain ( Mic / Line ) +12 to +60dB
Output Level +6dB
Frequency Response 20Hz - 20KHz
Signal to Noise RatioMic / Line Better than -75dB / Better than -85dB
THD (Mic / Line) < 1% / <0.05%
Tone Control - Bass / Treble ± 12dB / 100Hz / ±12dB / 10kHz
Input Connectors 6 x Line (Stereo RCA), 6 x Mix (XLR) & 4 x Aux (Stereo RCA)

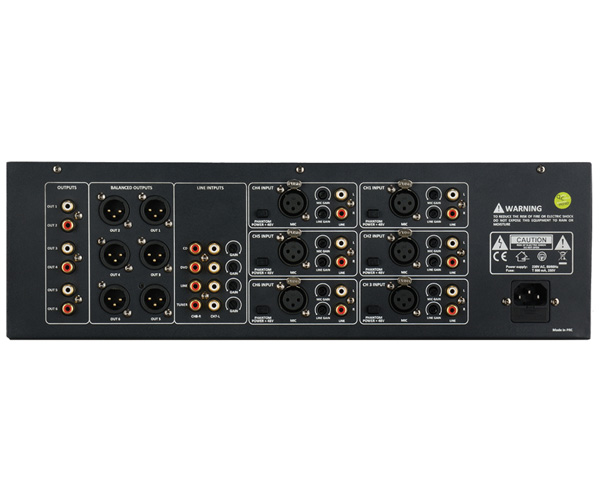

Output Connectors 6 x (XLR balanced and RCA Unbalanced)
Dimensions (W x D x H)mm 483 x 172.5 x 133 (3 U)
Net Weight (Kgs.) 4.8
