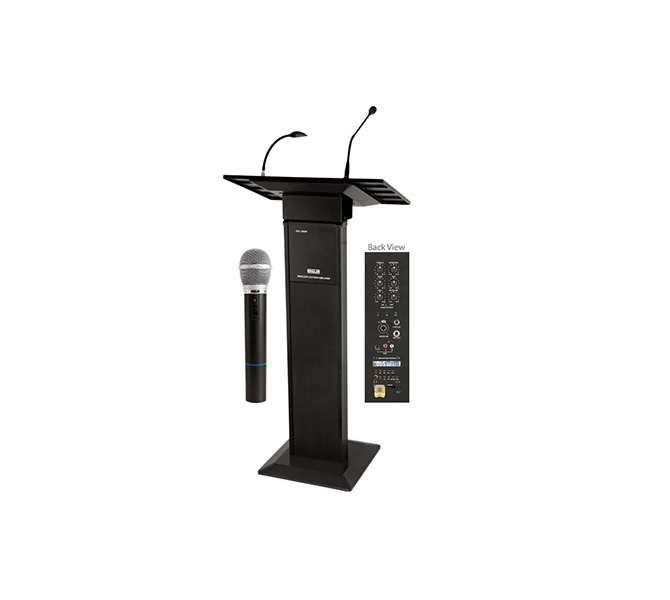

Compact, versatile and easy-to-assemble wireless Lectren Amplifier with built in 40W amplifier
Contains a built-in speaker system consisting of 3nos.6.5"(165mm) coated dual cone speakers.Provision given for connecting external speaker, if required
Supplied with a detachable gooseneck condenser microphone and a reading light for the podium top.
Contains a built-in VHF wireless transmitter diversity reciever. High quality VHF handheld wireless transmitter supplied.(Available in different frequencies)
Provision for connecting a wired microphone through a 6.3mm phone jack or a line source throughan XLR connector
Handheld wireless transmitter & gooseneck podium microphone have voice priority over all other inputs. This feature can be switched ON or OFF through a slide switch.
Built in digital recorder cum MP3 player, which can record on USB pen drives or SD cards.
Facility for connecting a stereo auxiliary source through L&R RCA plug.It accepts four different sensitivities of auxiliary signal which are selectable through a slide switch.
Seperate output connectors for LINE OUT & REC OUT through mini male XLR & 6.3mm phone socket respectively, allowing the lectern system to be connected external amplifiers for further amplification, if required.
Tonal adjustment can be done through cut-boost type Bass & Treble controls.
Rugged & stable floor standing base. Can be fixed to the floor with brackets (provided), if required.
Operates on 240V 50 Hz mains supply
Some assembly by the customer required.
Receiver Amplifier
Power Output
40 watts Max.
Speaker Impedance (External)
4 Ω
Input channels sensitivity
Mic-1 : 3.0mV
Mic-2 : 1.8mV, Line : 100mV
Aux Position-1: 100mV, Aux Position - 2 : 180mV
Aux Position-3 : 300mV, Aux Position -4 : 700mV
