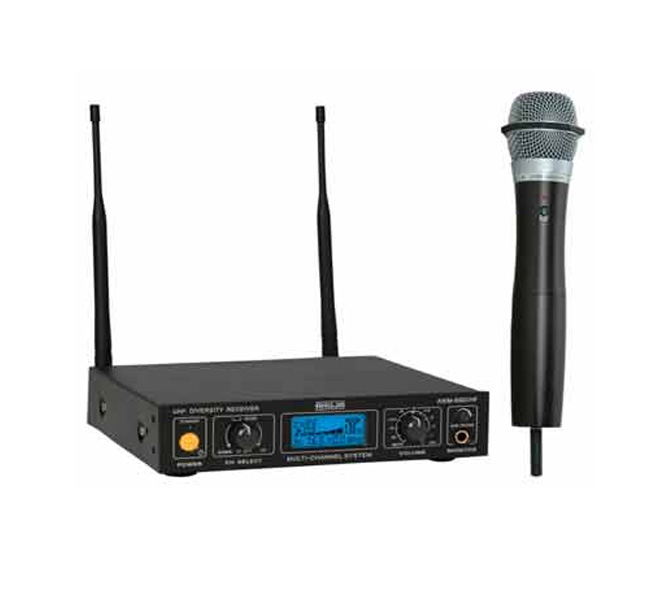

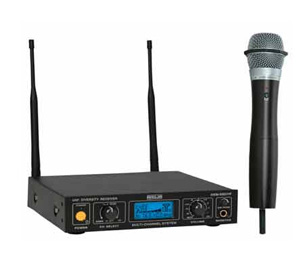

• High performance multi-channel UHF Wireless microphone system incorporating PLL frequency synthesis for stable performance
  • Special techniques like compander functiopn and tone squelch system enhance the reliability of the system even in difficult conditions.Distance coverage more than 200 feet
  • Table-top space diversity receiver with detachable BNC antennas
  • User-friendly LCD displays various functional parameters like Channel number (CH). carrier Freq (Fc), Microphone ON/OFF symbol, RF Level, Audio Level & status of DC supply to the receiver
  • Unbalanced audio output through 6.3mm(1/4")jack socket and balanced audio output through a 3-pin XLR male socket
  • Earphone output with volume control for monitoring purpose
Transmitter
RF Output Power 30mW (Max)
Carrier Frequency Range 700-900Mhz
Frequency Stability ±0.001%
Modulation Mode FM
Microphone Element Dynamic,cardioid
Frequency Response (±3db) 50-14,000Hz
Power requirement 3V (2Vx1.5V AA Pencil Cells)
Current consumption ≤80mA
Controls Microphone on/Mute/Off switch, 2digit thumbwheel switch
Indication Red LED for indicating Low Battery
Dimensions Ø 56 x L280mm
Weight 0.3 Kg (w/o battery)
Receiver
Carrier Frequency Range 700-900Mhz
Receiving System Diversity Reception
Audio Output 0-110mV/600Ω
S/N Ratio ≥90dB
Distortion ≤1%
Frequency Response (±3dB) 50-14,000Hz
Antenna A & B Detachable through BNC connector
Power Requirement 240V AC 50Hz for AC Adaptor (supplied alongwith)
Controls Power switch, channel select switch, volume control for Audio output, Volume control for Ear phone Output
Indications Blue LED for standby, Multi Function LCD display
Dimensions W210xH44xD190 mm
Weight 1.15Kg
