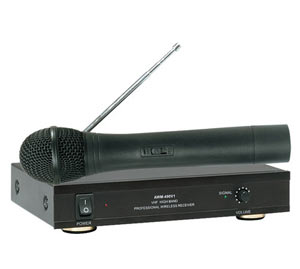

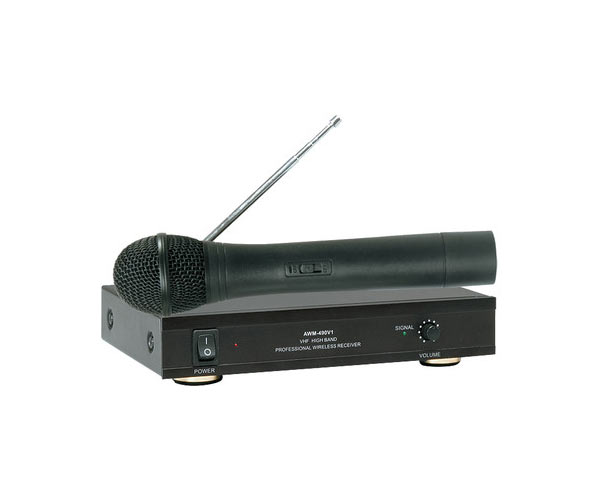

• Compact, lightweight, Dual Channel VHF wireless microphine system
  • Operates at Quartz Crystal Locked VHF High Band Frequency and available in different frequency groups.Two transmitter with seperate frequencies and one non-diversity receiver
  • Internal Antennas in th etransmitter and two telescopic antennas in the receiver for clear and distortion free reception
  • Receiver operates on 9V DC through an Ac adaptor, supplied along with the system.Each transmitter operates with a 9V Dry Battery
  • Transmitter with 3-position slide switch for Audio On, Audio mute, Off positions
  • Audio output from receiver available at OUT jack socket
  • Ideal for PA applications, Stage & Auditoriums, stadia, seminar Halls, Places of worship, receration centres
Transmitter
RF Output Power 15mW (Max)
Modulation Mode FM (F3E)
Microphone Element Dynamic,cardioid
Dynamic range 100dB
Maximum Deviation ±25Khz
Frequency Response 50-15,000Hz
Antenna type Internal dipole
Current consumption <60mA
Battery life 6-8 Hrs with 9V battery
Controls Microphone On/Off/Mute Switch
Indication GreenLED for indicating microphone ON
Dimensions Ø52 x L242mm
Weight 0.20 Kg (w/o battery)
Receiver
Frequency Stability ± 0.005% Quartz Crystal Controlled
Receiving Method Non-diversity
Audio Output 0-55mV /1kΩ
S/N Ratio ≥100dB
Distortion ≤0.5%
Frequency Response 50-15,000Hz
Antenna Type Telescopic
Power Requirement 220-240V AC 50Hz for AC Adaptor
Controls Power On/Off switch, Audio Output volume control
Dimensions W210 x H42 x D152 mm
Weight 0.61Kg
