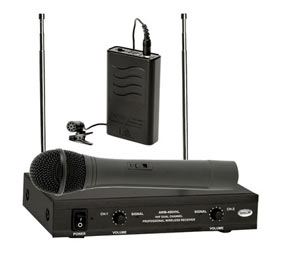

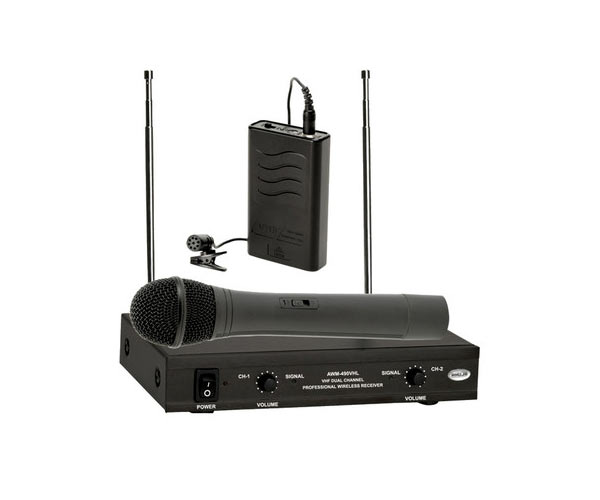

• Compact, lightweight, Dual Channel VHF wireless microphone system available in different frequency groups
  • Combination of a handheld dynamic transmitter & bodypack condenser transmitter for a wide variety of applications
  • Internal Antennas in the transmitter and two telescopic antennas in the receiver for clear and distortion free reception
  • Receiver operates on 9V DC through an Ac adaptor, supplied along with the system.Each transmitter operates with a 9V Dry Battery
  • Transmitter with 3-position slide switch for Audio On, Audio mute, Off positions
  • Audio output from receiver available at OUT 1 & OUT 2 individually and as mixed output at OUT 1 +2
  • Ideal for PA applications, Stage & Auditoriums, stadia, seminar Halls, Places of worship, receration centres
Hand Held TX
RF Output Power 15mW (Max)
Modulation Mode FM (F3E)
Microphone Element Dynamic,cardioid
Dynamic range 100dB
Frequency Response 50-15,000Hz
Antenna type Internal dipole
Current consumption <60mA
Battery life 6-8 Hrs with 9V battery
Controls Microphone On/Off/Mute Switch
Indication Red LED for mic ON
Dimensions Ø52 x L242mm
Weight 0.20 Kg (w/o battery)
Tei-Clip TX
RF Output Power 10mW (Max)
Modulation Mode FM (F3E)
Microphone Element Condenser ,omni directional
Dynamic range 80dB
Frequency Response 80-12,000Hz
Current consumption <60mA
Battery life 6-8 Hrs with 9V battery
Controls Microphone On/Off/Mute Switch
Indication Green LED for indicating power of cells
Dimensions W65 x H32 x D107mm
Weight 0.11 Kg (w/o battery)
Receiver
Frequency Stability ± 0.005% Quartz Crystal Controlled
Receiving Method Non-diversity
Audio Output Channel 1: 0-55mV /1kΩ, Channel 2 : 0-55mV /1kΩ
  Channel 1+2 : 0-55mV /1kΩ
S/N Ratio ≥100dB
Distortion ≤0.5%
Frequency Response 50-15,000Hz
Antenna Type Telescopic
Power Requirement 220-240V AC 50Hz for AC Adaptor
Controls Power On/Off switch, Audio Output volume control
Indications Red LED for Power ON, Green LED for RF reception for Ch.1 & Ch.2
Dimensions W210 x H42 x D152 mm
Weight 0.70Kg
