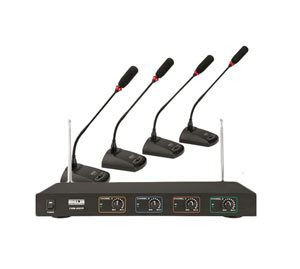

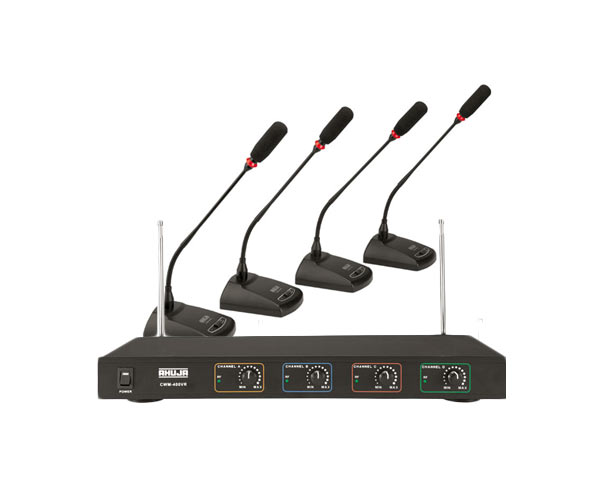

• Compact and elegant high band VHF wireless microphone system with four gooseneck microphones
  • Available in frequencies ( 2 sets of 4 each )
  • Transmitter are unidirectional condenser type fitted with gooseneck ON/OFF switch and an indicator LED
  • Sleek table-top receiver which can receive signals from upto 4 gooseneck transmitter
  • Individual output volume control and a RF LED for each channel is provided on the front panel of the receiver
  • Separate 6.3mm (1/4") phone jack for audio output from each channel is available on the rear panel.
  • Receiver operates on 12V DC through an Ac adaptor, supplied along with. Transmitter operates with 2 x 1.5V AAA alkaline cells
Transmitter
RF Output Power 10mW (Max)
Modulation Mode FM
Microphone Element Condenser,cardioid
Frequency Response 80-15,000Hz
Power Requirement 2 x 1.5V AAA Alkaline Cells
Current consumption <60mA
Battery life 6-8 Hrs with 9V battery
Controls On/Off Push Switch
Indication Red ring LED in the gooseneck & Red round LED in the base
Dimensions W90 x H60 x D130mm (mic base)
Weight 0.55 Kg (w/o battery)
Receiver
Frequency Stability ± 0.005%
Audio Output 0-55mV adjustable (each channel)
S/N Ratio ≥80dB
Distortion ≤0.5%
Frequency Response 50-15,000Hz
Antenna Type Telescopic
Power Requirement 220-240V AC 50Hz for AC Adaptor (supplied alongwith)
Controls Power switch, Output volume control for each channel
Indications Power ON & Signal
Dimensions W420 x H54 x D210 mm
Weight 1.80Kg
