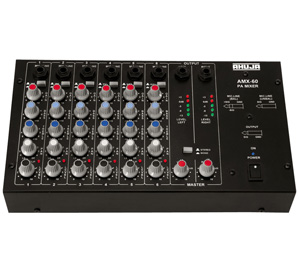

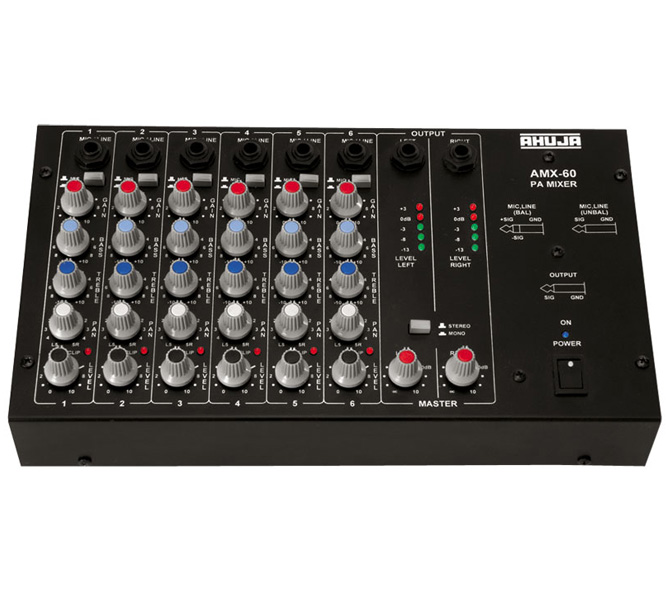

• Ahuja offers an elegant & rugged six channel audio mixer AMX-60. This compact mixer has all the basic ingredients of a professional mixer like electronically balanced MIC/LINE inputs, two band equalisation, five point output level display, clip indicators, higher overload margins etc. Ideal for use in Houses of Worship, Educational Institutions, DJs and a variety of PA Applications.
  • Six channel professional PA mixer which is light-weight and easily portable.
  • Compact, robust & aesthetically superior housing in silver coloured finish.
  • Upto six low impedance Microphones can be connected in either balanced or unbalanced configuration, through a 1/4" stereo jack socket.
  • Alternatively, each channel input can accept a balanced or an unbalanced line source like CD Player, Keyboard, Guitar Pre-amp., Drum Kit etc.
  • Each channel has a push switch for selecting between MIC and LINE input.
  • GAIN Control on each channel for optimum adjustment of the input sensitivities.
  • Active bass & treble circuitry in each channel for desired equalisation of the input signal.
  • Each channel has a clip LED which glows when the level of input signal is excessive and the same should be reduced by the gain control.
  • Pan control on each channel for desired distribution of the signal to left and right outputs.
  • Line level L & R outputs through 1/4" jack sockets.
  • Individual 5-segment LED array indication for accurate setting of L&R line output levels.
  • Individual master volume controls for left & right line outputs.
  • Option of Mono/Stereo mode of operation through a push switch.
  • Power ON indication through a blue LED.
  • Operates on 220 - 240V, 50Hz AC Mains.
Mic Input (Impedance/Gain) 2k Balanced/62 dB
1k Unbalanced/62dB
 Line Input (Impedance/Gain) 20k Balanced/42dB
10k Unbalanced/42dB
Distortion < 0.1 %
 Frequency Response 20Hz-18 kHz (-1dB)
Tone Controls Bass: ±12dB at 100 Hz Treble: ±12dB at 10kHz
 Line Output L/R Nominal 0dBm (775mv)
 Maximum +18dBm (6.5V)
 S/N Ratio > 68dB
 Clip LED Indication 4dB prior to true clip
 Power Supply 220-240V AC 50Hz
 Dimensions W295 X H70 X D180mm
 Weight 2.4 Kg
