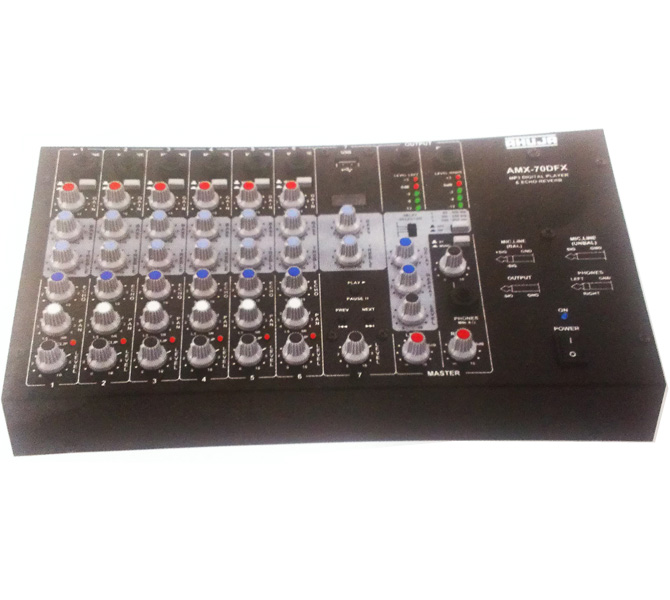

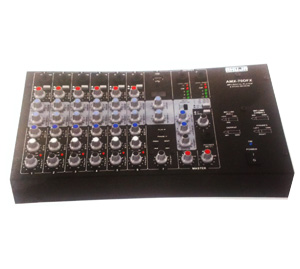

• All purpose 7 Channel PA mixer Preamplifier
  • Each input channel has a 1/4" balanced phone jack for Mic/Line & accepts both balanced & unbalanced signals
  • Independent USB playback channel with BASS, TREBLE and LEVEL controls
  • Built-in digital effects processor with Delay, Repeat & LEVEL controls
  • Delay range selection through a selector switch
  • Each MIC/LINE channel has GAIN, BASS, TREBLE, PAN and LEVEL comtrols with Clip LED indicator
  • Mono output is available from either Left or Right output jacks when the switch is in 'Mono' position
  • Individual five segment LED array for left and right outputs
  • Headphone output, with volume control, for monitoring purposes
Mic Input (Impedance/Gain) 2k Balanced/62 dB
1k Unbalanced/62dB
 Line Input (Impedance/Gain) 20k Balanced/42dB
10k Unbalanced/42dB
Distortion < 0.1 %
 Frequency Response 20Hz-18 kHz (-1dB)
Tone Controls Bass: ±12dB at 100 Hz Treble: ±12dB at 10kHz
 Line Output L/R Nominal 0dBm (775mv)
 Maximum +18dBm (6.5V)
 S/N Ratio > 68dB
Headphone output 200mV at 8Ω (<1%)
Delay range settings 1:60-300ms, 2:300-500ms, 3: 500-650ms
Delay System Digital signal Processing
 Power Supply 220-240V AC 50Hz
 Dimensions W345 X H75 X D205mm
 Weight 3.1 Kg
