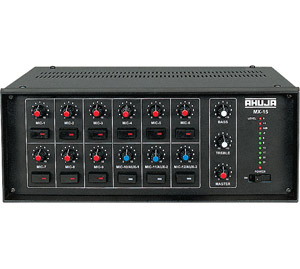

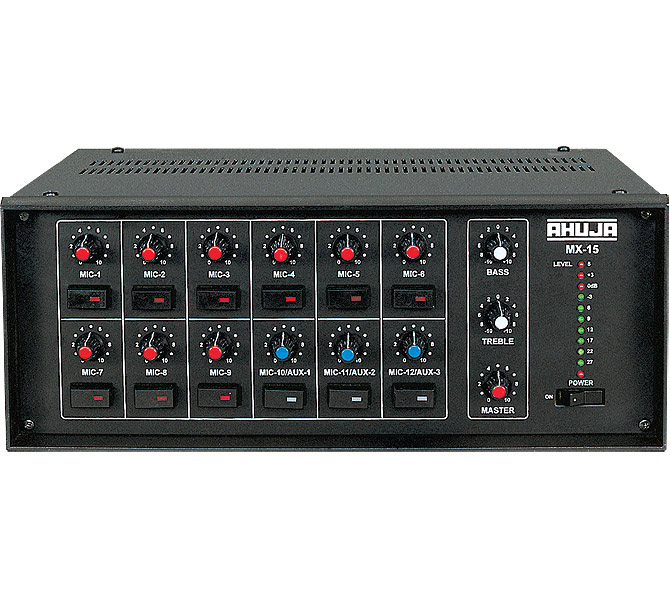

• General Purpose 12 Channel PA Mixer Preamplifier
  • 12 Mic & 3 Aux Inputs.
  • All inputs with On/Off switches with LED display.
  • Master control for overall adjustment.
  • 4 Line outputs for connecting a number of Amplifiers or Boosters.
  • Headphone output for monitoring.
  • Active Bass and Treble tone controls.
Power Requirement AC: 220-240V 50/60Hz DC: 12V (1×12V Car Battery)
Outputs 2 × Preamp 200mV/600 4 × Line 1V/1k
1 × Headphone 120mV@8
Frequency Response 20-20,000Hz (±3dB)
Distortion < 1%
Signal to Noise Ratio 50dB
Input Channels 12 × Mic 0.6mV/4.7k 2 × Aux 100mV/470k
1 × Aux 500mV/100k
Tone Controls Bass: ± 10dB at 100Hz Treble: ± 10dB at 10kHz
Dimensions W350 × H145 × D200 mm
Weight 3.9kg
