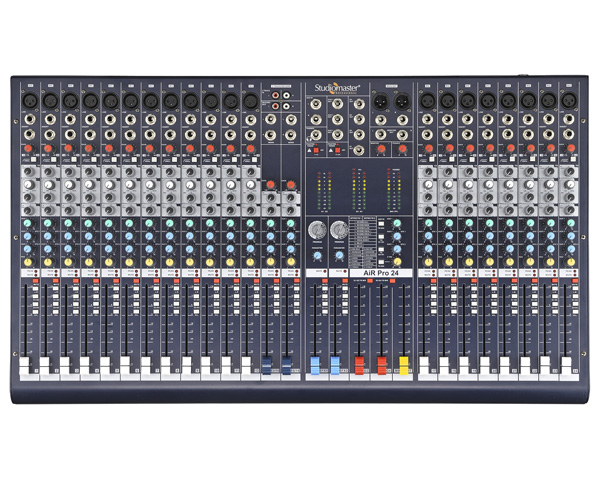

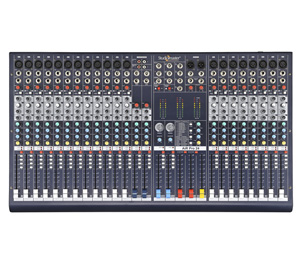

The AiR Pro 24 is a 24 channel Mixing Console with dual effects processor, designed for live, front-of-house touring and installation applications.

  • 24 Channel Mixer (20 Mic/Line 4 Stereo Inputs).
  • Built-in Dual Effect Processor.
  • 3-band EQ with Mid-sweep on mono inputs.
  • 2-band EQ on stereo inputs.
  • Insert On Mono Channel.
  • 3 AUX Channels
  • Stereo AUX Return.
  • Mix & Group Routing on each channel.
  • 4 Sub Group out
  • 100mm faders.
  • PFL switch on each channel.
  • 100Hz Low cut switch on each channel.
  • Split global phantom power  (from channel 1-12 & 17-24)
  • Peak & Mute LED per channel.
  • 2-track RCA record output.
  • Headphones & Monitor outputs with level control.
  • 2-track RCA Input with level control.
  • Balanced XLR & Jack Master Output
Nominal Gain (Mic/Line/Stereo Line) 60dB/40dB/20dB
Max Gain (Mic/Line/Stereo Line) 80dB/60dB/40dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) -10dBu / -60dBu
Line (Gain Min /Gain Max) +10dBu / -40dBu
Stereo Line (Gain Min /Gain Max) +10dBu / -20dBu
Input Impedence
Mic Input 2KΩ Balanced
Line input 20KΩ (Balanced) /10KΩ (Unbalanced)
Main Output & Group Output (Nominal/Max) 0dBu (0.775V RMS) / +20dBu (7.75V RMS)
Frequency Response 20Hz to 20KHz (+0/-1 dB)
Total Harmonic Distortion < 0.02%
Signal to Noise Ratio -80dB
Clip indication 5dB prior to true clip
Equalisation
Mono Mic [Treble/Mid(with sweep)/Bass] ±16dB @ 12KHz/140Hz-3KHz/80 Hz
Stereo Mic/Line (Treble/Bass) ±16dB @ 12KHz/80Hz
EFX & USB 2 x 16EFX (EFX1 & EFX2)
Phantom supply  +48V (Separate Selection for 1-12& 17-24 Channels)
Power supply 150V 250V AC/50Hz (External Power supply)
Dimensions (W x D x H)mm 752 x 430 x 93
Net Weight (Kgs.) 12
