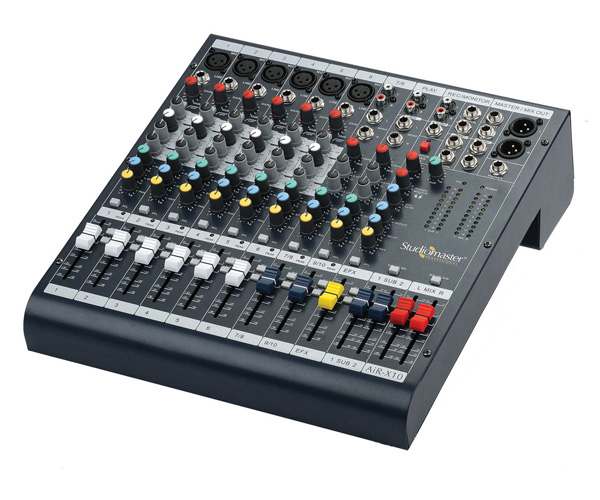

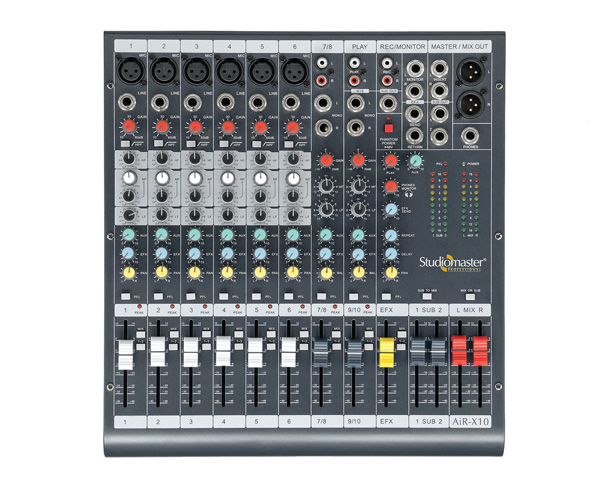

The Studiomaster Professional AiR-X Series mixers are the new addition to the AiR Family with a host of additional features.

  • 6 Mic/Line + 2 Stereo Line Inputs
  • 3 Band EQ (with mid sweep) on Mono Inputs, 2 Band on Stereo Inputs.
  • High-pass filter on each channel.
  • Mix, Group & PFL Routing per chanel.
  • 2 Sub Groups with Individual Output.
  • Insert (Send/R eturn) on master.
  • Stereo RCA Play back In & Record Out.
  • Balanced XLR outputs.
  • 1 Aux Send.
  • L/R Pan control & Peak LED per channel
  • Delay EFX with send/return.
  • Globally switched +48V phantom power.
  • 10 Segments L/R LED meter for master level
  • Headphones & Monitor outputs with level control
Gain (Mic/Line/Stereo Line) 60dB/40dB/20dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) -5dBu / -60dBu
Line (Gain Min /Gain Max) +6dBu / -40dBu
Stereo Line (Gain Min /Gain Max) +10dBu / -20dBu
Main Output level (Nominal / Max) +0dBu (0.775V RMS) / +20dBu (7.75V RMS)
Frequency Response 20Hz to 20KHz (+0/-3 dB)
T otal Harmonic Distortion < 0.03%
Signal to Noise Ratio -85dB
Clip indication 4 dB prior to true clip
Equalisation (T reble/Mid(with sweep)/Bass) ±15dB @ 12KHz/120Hz-4KHz/80 Hz
EFX & USB EFX
Phantom supply +48 V
Power Supply AC 240 V/50Hz (External Adaptor)
Dimensions (W x D x H in mm) 320 x 340 x 115
Net Weight (Kgs.) 4.7
