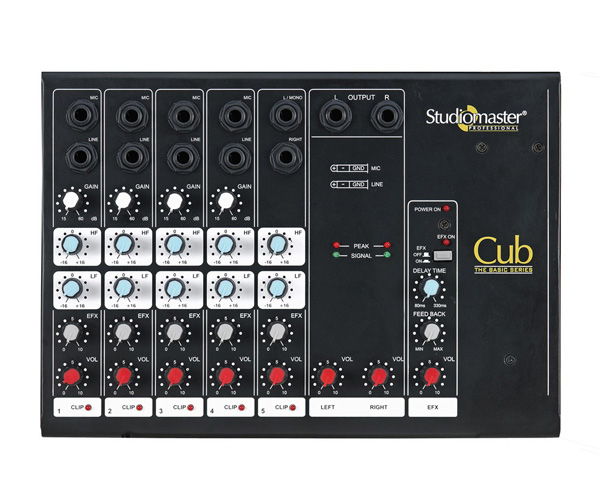

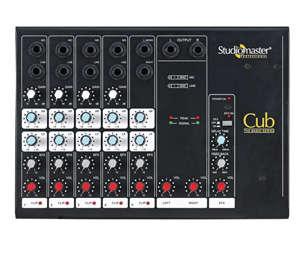

The Basic Series from Studiomaster Professional are a range of high quality compact mixers designed with features suitable for both beginners as well professionals.

  • 5 Channel mixer with Delay EFX
  • 4 Mono, 1 Stereo Input.
  • Balanced 1/4” phono jack for Mic/Line Inputs.
  • High quality Built-in echo with dedicated delay & feedback control
  • Gain control with 2 band EQ per channel.
  • ¼” TRS Jack unbalanced L/R Main Output
Model Basic CUB
Nominal Gain (Mic/Line/Stereo Line) 65dB/55dB/0dB
Max Gain (Mic/Line/Stereo Line) 83dB/73dB/18dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) +4dBu / -65dBu
Line (Gain Min /Gain Max) +14dBu / -55dBu
Input impedence
Mic Input Typically 5K Ω balanced
Line input 20K Ω (Balanced) /10K Ω (Unbalanced)
Stereo Line 20K Ω (Balanced) /10K Ω (Unbalanced)
Main Output level (Nominal /Max) 0dBu (0.775V RMS) / +17dBu (5.5V RMS)
Main Output Impedance <50 Ω
Frequency Response 25Hz to 19KHz (+0/-1 dB)
Total Harmonic Distortion Better than 0.8%
Signal to Noise Ratio -76 dB
Clip indication 4 dB prior to true clip
Equalisation (Treble/Bass) ±16dB @ 10KHz/100 Hz
EFX & USB EFX
Power supply 150V~250V AC/50Hz
Dimensions (W x D x H in mm) 275 x 208 x 77
Net Weight (Kgs.) 1.5
