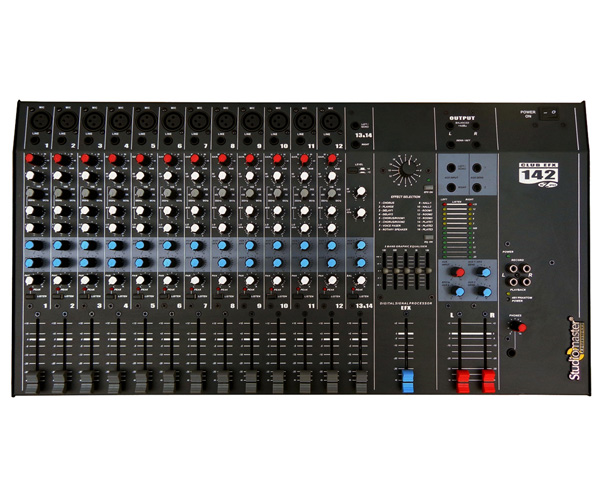

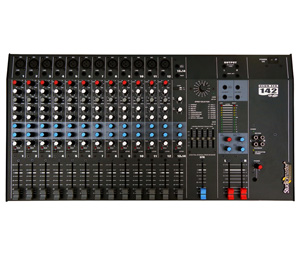

The Club 2000 series is designed to offer truly relevant features with simplicity, making the series suitable for a wide range of applications.

  • 10 Mic / Line + 2 Stereo Line Inputs + 16-preset Analogue Effects.
  • 3-band EQ with mid sweep on mono channel, 2- band on stereo.
  • 2 Aux send / 1 stereo return with Rotary controls perchannel.
  • Globally switched +48V phantom power switch.
  • 5-band graphic EQ on board (Available only on the C142EFX).
  • 12 Segments L/R Led Meter for master level.
  • Stereo playback input / Rec out RCA jack.
  • Balanced 1/4" TRS Jack L/R main Output
Nominal Gain (Mic/Line/Stereo Line) 60dB/40dB/12dB
Max Gain (Mic/Line/ Stereo Line) 75dB/55dB/27dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) -10dBu / -60dBu
Line (Gain Min /Gain Max) +10dBu / -40dBu
Stereo (Gain Min /Gain Max) 0dBu/-12dBu
Input impedence
Mic Input Typically 2K Ω balanced
Line input 20K Ω (Balanced) /10K Ω (Unbalanced)
Stereo Line 15K Ω (Balanced) /10K Ω (Unbalanced)
Main Output level (Nominal /Max) 0dBu (0.775V RMS) / +22dBu (10V RMS)
Main Output Impedance <75 Ω
Frequency Response 25Hz to 20KHz (+0/-1 dB)
Total Harmonic Distortion <0.004%
Signal to Noise Ratio -75 dB
Clip indication 5 dB prior to true clip
Equalisation
Mono Mic [Treble/Mid(with sweep)/Bass] ±15dB @ 12KHz/350Hz-6KHz/60 Hz
Stereo Mic/Line (Treble/Bass) ±15dB @ 12KHz/45 Hz
EFX & USB EFX
Phantom Supply +48V
Power supply 150V~250V AC/50Hz
Dimensions (W x D x H in mm) 608 x 322 x 87
Net Weight (Kgs.) 6.5
