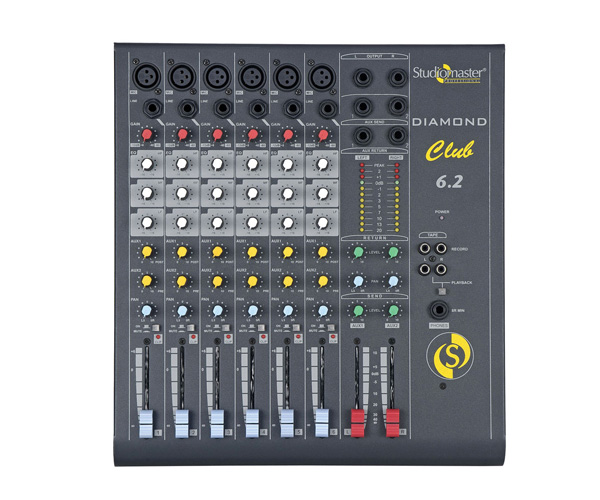

The best selling & the most trusted mixing consoles in India. These mixers are built to match international standards, they are ideal for professionals as well as amateurs.

  • 6 Mic/Line
  • Balanced Mic/Line Inputs
  • Gain control with 3 Band EQ per channel.
  • 2 Aux Sends/ Returns.
  • 1 pre & 1 post aux sends rotary control per channel.
  • L/R Pan Pot, Illuminated Mute Switch & Clip LED per Channel.
  • 12 segments L/R LED meter for Master Level.
  • Stereo Tape in/tape out, Headphone out.
  • Blue Power on LED
  • ¼ TRS, L/R Main Output.
  • Elegant Shape – Curve front
  • Stylish Grey panel
Nominal Gain (Mic/Line) 60dB/40dB
Max Gain (Mic/Line) 76dB/56dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) -12dBu / -60dBu
Line (Gain Min /Gain Max) +8dBu / -40dBu
Input impedence
Mic Input Typically 5K Ω balanced
Line input 20K Ω (Balanced) /10K Ω (Unbalanced)
Main Output level (Nominal /Max) 0dBu (0.775V RMS) / +17dBu (5.5V RMS)
Main Output Impedance <50 Ω
Frequency Response 25Hz to 19KHz (+0/-1 dB)
Total Harmonic Distortion Better than 0.8%
Signal to Noise Ratio -76 dB
Clip indication 4 dB prior to true clip
Equalisation (Treble/Mid/Bass) ±16dB @ 10KHz/2.5KHz/100 Hz
EFX & USB -
Power supply 150V~250V AC/50Hz
Dimensions (W x D x H in mm) 335x376x89
Net Weight (Kgs.) 3.75
