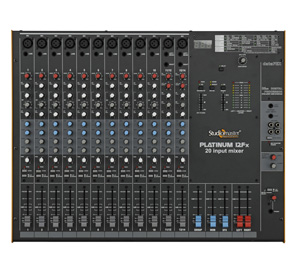

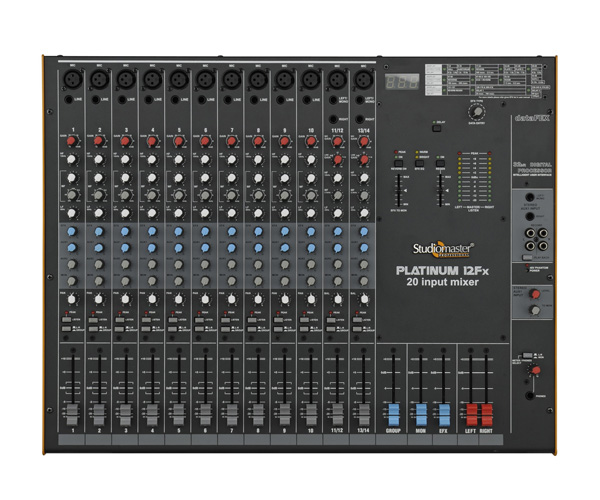

The Platinum 12 Fx is professional full-fledged 20 channel mixer with 12 Mic inputs, 10 Line inputs & 2 Mon-Ster inputs with a high quality EFX Processor.

  • 20 input Mixer 12 Mic / 10 Line + 2 Mono ster
  • 3 band EQ with mid –sweep on mono channel.
  • Mon-Ster Input for Full Flexibility
  • 2 Aux Sends/ 1 Stereo Aux Returns
  • 2 Aux, 1 EFX, 1 Mon rotary control on each channel (Total 4 Aux sends).
  • Listen  (PFL) & Group / Master routable switch per channel.
  • L/R pan control on each channel.
  • Globally switched +48V phantom power.
  • 12 Segment L/R LED meter for Master, PFL & Monitor Level.
  • Separate master fader control for Group, Monitor & L/R output.
  • ¼” Jack for Line out & monitor output.
  • Stereo Tape In/ Tape Out, Headphone out with rotary volume control.

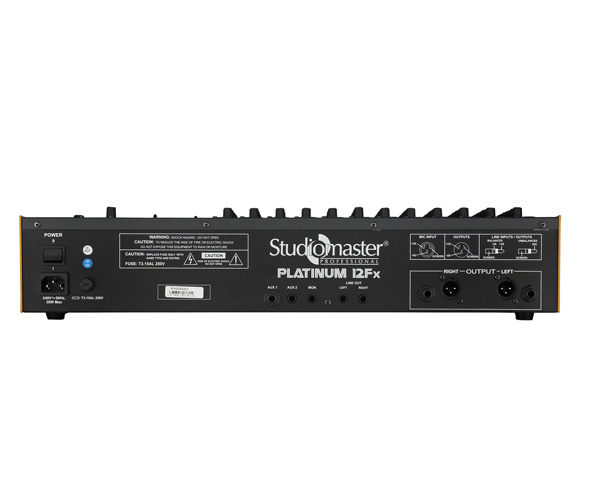

  • Balanced XLR & ¼” Jack Master output.
Nominal Gain (Mic/Line) 60dB/40dB/20dB
Max Gain (Mic/Line) 75dB/55dB/35dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) -10dBu / -60dBu
Line (Gain Min /Gain Max) +8dBu / -40dBu
Stereo Line (Gain Min /Gain Max) +6dBu / -24dBu
Input impedence
Mic Input Typically 2K Ω balanced
Line input 20K Ω (Balanced) /10K Ω (Unbalanced)
Main Output level (Nominal /Max) +0dBu (0.775V RMS) / +22dBu (10V RMS)
Main Output Impedance <30Ω
Frequency Response 25Hz to 20KHz (+0/-1 dB)
Total Harmonic Distortion <0.006%
Signal to Noise Ratio -78 dB
Clip indication 5 dB prior to true clip
Equalisation
Mono Mic [Treble/Mid(with sweep)/Bass] ±15dB @ 12KHz/350Hz-6KHz/60 Hz
Stereo Mic/Line (Treble/Bass) ±15dB @ 12KHz/1.6KHz/45 Hz
EFX 32 bit Multi EFX processor
Phantom Supply +48V
Power supply 150V~250V AC/50Hz
Dimensions (W x D x H in mm) 564 x 442 x 124
Net Weight (Kgs.) 10.4
