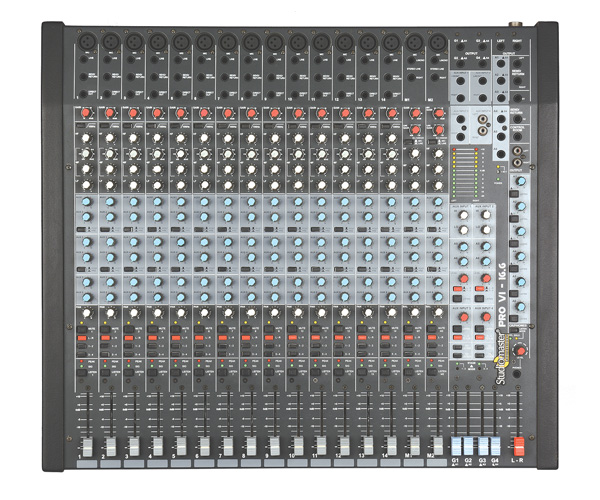

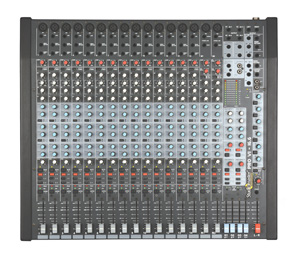

The Pro 6 Series is an amazing range of large format Mixers from Studiomaster Professional.

  • 16 Mic / 14 line + 2 Stereo Line inputs.
  • 3-band EQ with mid sweep on mono channel.
  • Mon-ster Inputs for full flexibility
  • Insert (send / Return) & direct out on mono channels.
  • Group / Mute /Listen (PFL) & L/R switch on each channel.
  • 6 Aux send / 4 stereo returns.
  • AUX 1, 2, 3 & 4 switchable between PRE & POST.
  • Aux Input 1&2 has a 2-band EQ.
  • Listen switch on Aux sends
  • 48V global phantom power switch.
  • L/R & G1, G2 send / return on board.
  • 4 Sub-group outs with fader & listen switch.
  • L/R pan control on each channel
  • Balanced XLR & ¼” Jack Master Outputs
Nominal Gain (Mic/Line/Stereo Line) 60dB/40dB/22dB
Max Gain (Mic/Line/Stereo Line) 76dB/56dB/38dB
Input Levels Sensitivity
Mic (Gain Min/Gain Max) -12dBu / -60dBu
Line (Gain Min /Gain Max) +8dBu / -40dBu
Stereo (Gain Min /Gain Max) -2dBu / -22dBu
Input impedence
Mic Input Typically 2K Ω balanced
Line input 20K Ω (Balanced) /10K Ω (Unbalanced)
Main Output level (Nominal /Max) +4dBu (1.2V RMS) / +28dBu (19.5V RMS)
Main Output Impedance <75 Ω
Frequency Response 20Hz to 20KHz (+0/-1 dB)
Total Harmonic Distortion <0.1%
Signal to Noise Ratio -79 dB
Clip indication 4 dB prior to true clip
Equalisation
Mono Mic [Treble/Mid(with sweep)/Bass] ±15dB @ 12KHz/250Hz-6KHz/60 Hz
Stereo Mic/Line (Treble/Bass) ±15dB @ 12KHz/1.5 Hz/45 Hz
Phantom Supply +48V
Power supply 240V AC/50Hz (EP 7 Power Supply)
Dimensions (W x D x H in mm) 615 x 535 x 162
Net Weight (Kgs.) 14
