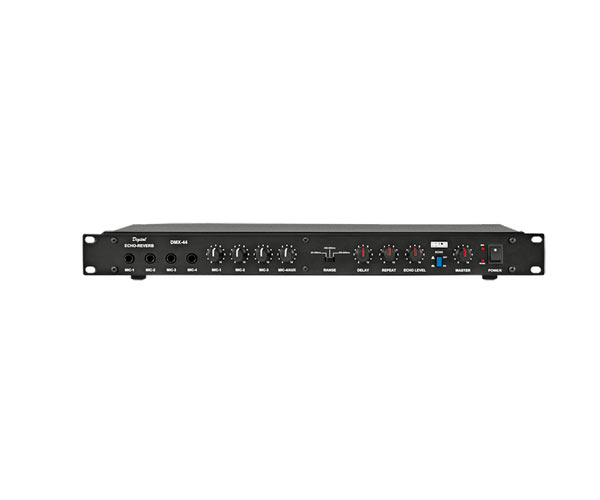

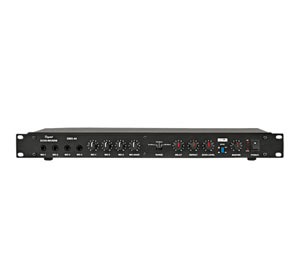

• Professional 4 Channel Mixer Preamplifier with Digital Effects Processor for Echo, Reverb, Chorus, Effect
  • 3 Selectable delay settings for fine adjustment.
  • Compatible with Audio Mixing Consoles.
  • Peak LED for setting optimum distortion free input levels.
  • Echo facility on all inputs through Echo volume, repeat & delay controls.
Power Requirement AC: 220-240V 50/60Hz DC: 12V- 24V
Outputs Preamp 200mV/2kΩ , Line: 775mV/10KΩ
Frequency Response 20-20,000Hz (±3dB)
Distortion < 1%
Signal to Noise Ratio 45dB
Input Channels 4 × Mic 0.7mV/10k 1 × Aux 200mV/470k
Echo Reverb System Digital Signal Processing
Delay Time 60ms to 300ms, 300ms to 500ms, 500ms to 600ms
Dimensions W483 × H54 × D155 mm
Weight 2.72kg
