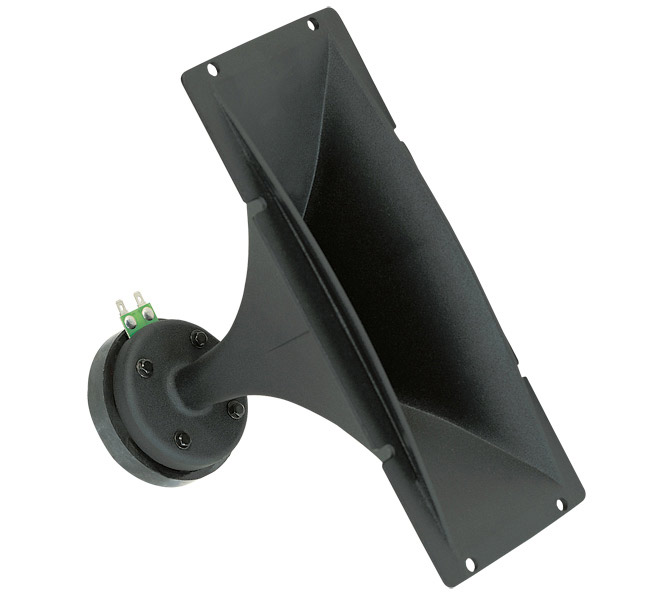

• Professional compression driver-horn CDH-200 loudspeaker, is suitable for medium power speaker systems.
  • It is ideal for use in a 200W to 300W system. Can be combined with a single Low Frequency speaker like L12-MB150 or L15-MB300, to make an excellent medium power full range speaker system. The integrated horn is made of die-cast aluminium.
Power Capacity 20W RMS
Throat Diameter 25.4 mm (1”)
Nominal Impedance> 8
Sensitivity (1W/1m ) 105dB
Usable Frequency Range 3kHz-15kHz
Recommended Crossover 4kHz 12dB/oct
Voice Coil Diameter 25.4 mm
Diaphragm Material Phenolic Resin
Voice Coil Material Round Copper Wire
 Voice Coil Former Nomex
Horn Material Cast Aluminium
Nominal Coverage Angle H100° x V80° (-5 dB)
Horn Cut off Frequency 780Hz
Overall Dimensions W270 × H110 × D205 mm
Weight 1.36kg
