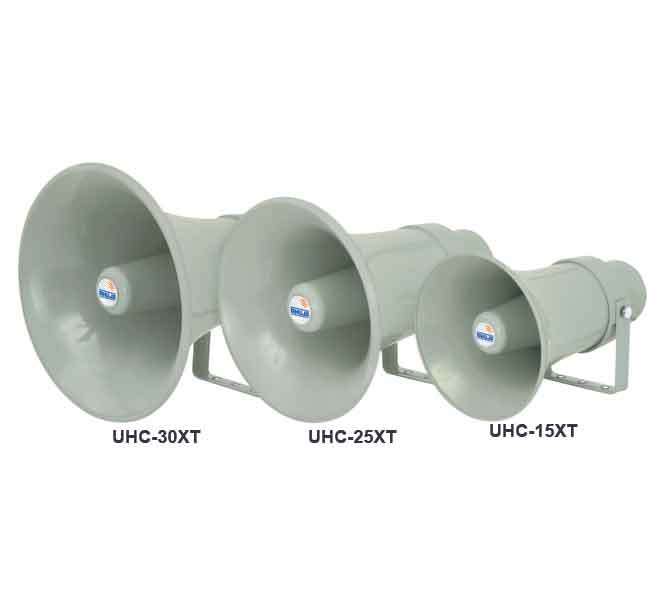

- Ahuja high quality, weather proof horn speakers are compact, light weight, rugged and moulded in tough ABS plastic.
- The specifications and construction of these are similar to the low impedance horn speakers. These models have been provided with 100V line matching transformers with multiple taps/impedance easily selectable by changing the rotary switch at the rear of the sealed assembly.
- These 100V models are ideal for installations where long speaker cables are used, to avoid power loss in the cables.
- Rectangular models are particularly suitable for areas where directivity of sound is of importance.
- They meet European Union regulations and comply with low voltage directive standard EN 60065. Degree of protection
- IP 66 is provided against foreign particles such as dust and jets of water, thus making them ideal for outdoor use.
- Ideal for Paging Systems... Siren & Alarm Systems... Traffic & Crowd Control by Police... Indoor & Outdoor Applications... Publicity... Parking Lots... High Noise Areas...
UHC-30XT |
Input Power |
30W RMS/45W Max. |
Power Taps |
30/25/20/15/10/5W |
Impedance |
330/400/500/670/1k/2k |
Frequency Response |
240-10,000Hz |
SPL at 1kHz |
108dB/1W/1m 123dB/30W/1m |
Dimensions |
Ø313 (L315) mm |
Weight |
2.39kg |
Material |
ABS |
UHC-25XT |
Input Power |
25W RMS/38W Max. |
Power Taps |
25/20/15/10/5W |
Impedance |
400/500/670/1k/2k |
Frequency Response |
250-10,000Hz |
SPL at 1kHz |
108dB/1W/1m 122dB/25W/1m |
Dimensions |
Ø274 (L310) mm |
Weight |
2.34kg |
Material |
ABS |
UHC-15XT |
Input Power |
15W RMS/23W Max. |
Power Taps |
15/10/5/2.5W |
Impedance |
670/1k/2k/4k |
Frequency Response |
275-7,000Hz |
SPL at 1kHz |
106dB/1W/1m 118dB/15W/1m |
Dimensions |
Ø205 (L270) mm |
Weight |
1.78kg |
Material |
ABS |
