• Rugged & portable with easy to carry handle.
  • Contains one wireless receiver for the VHF high band wireless transmitter which is supplied along with
  • Two wired microphone inputs and an AUX input (for connecting a CD player, PC/Laptop, Mixer) are available
  • Mic 1 has voice priority over other inputs. Seperate Bass & Treble controls provided
  • Record output can be used for recording or connecting a high power PA booster amplifier
  • Operates on AC mains, 12V car battery & 12V 3.5AH rechargable battery
  • Facility to recharge a 12V 3.5AH battery, 9V battery and 1.5V AA pencil cells
  • Provision for mounting the unit on a stand is available
Power Output 25W max
Inputs Mic 1:3mV, Mic 2: 3mV, Aux:100mV
Rec Output 800mV nominal
Tone controls Bass: ±6dB at 80Hz Treble : ±6dB at 8Khz
Power Supply AC : 220V-240V 50/60Hz DC: 12V (12V Car Battery)
and 12V 3.5Ah rechargable battery
Dimensions W215 x H285 x D150 mm
Weight 2.85 kg

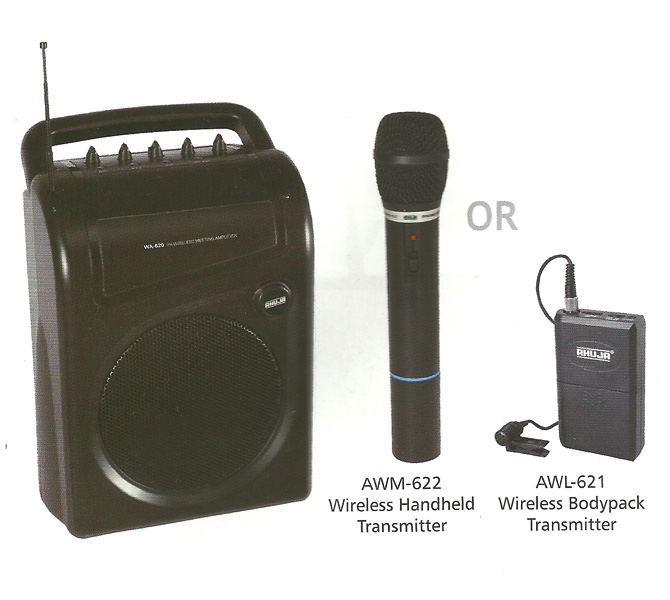

Transmitter AWM-622
RF output power 10mW (max)
Modulation mode FM(F3E)
Frequency response 50-15,000Hz
Battery 1 x 9V battery
Dimension Ø52 x L245mm
Weight 190gms
Transmitter AWM-621
RF output power 10mW (max)
Modulation mode FM(F3E)
Frequency response 50-15,000Hz
Battery 1 x 9V battery
Dimension W23 x H66 x D 106mm
Weight 100gms
