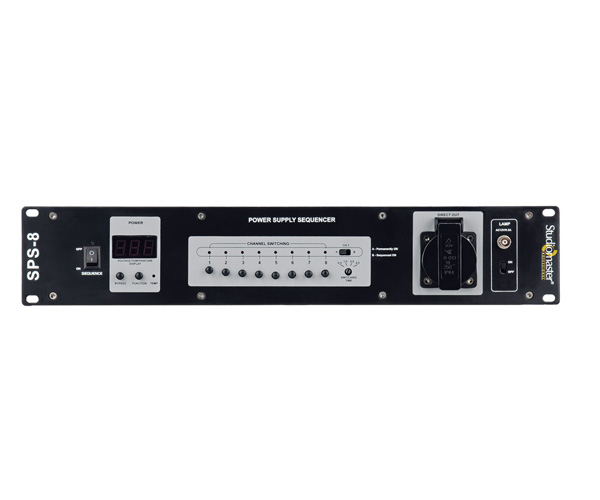

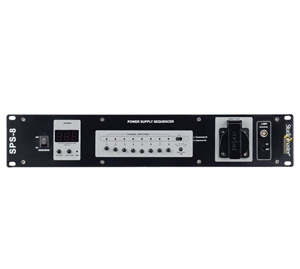

The Studiomaster Professional SPS-8 is a 8 Channel Power Sequencer, that supplies power to equipment in sequence, thereby offering maximum safety & utmost ease in operation, making it ideal for range of sound reinforcement applications.

  • Provides Powering On & Off Sequencing.
  • 2 x 25 Ampere Output Channels for high power equipment like amplifiers, powered speakers etc.
  • 2 Operating Modes: Permanent ON & Sequenced On.
  • 6 x 6 Ampere Output Channels for other lower power equipment like Mixers, CD Players, processors etc.
  • Provides +24V DC Supply to connect auxiliary equipments.
  • Surge & Spike Protection.
  • Selectable Sequence Delay time from 0.5 to 4 Seconds.
  • BNC Lamp Connector On Front Panel.
  • LED Display for AC voltage & ambient temperature.
Output Current 6 x 6A AC & 2 x 25A AC (RMS)
Output Voltage Max. 275Vac
Output Power 1440 VA ea. (CH 1 -6 ) & 6000VA ea. (CH 7 - 8)
Required AC Mains 240VAC (50Hz)
Dissipation Power 20W
Unit Dimensions (W x D x H) mm 483 x 347 x 89
Net Weight 8.80 Kg
