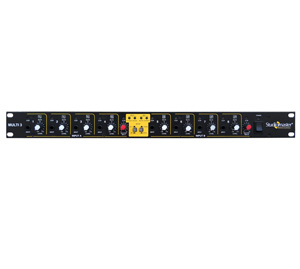

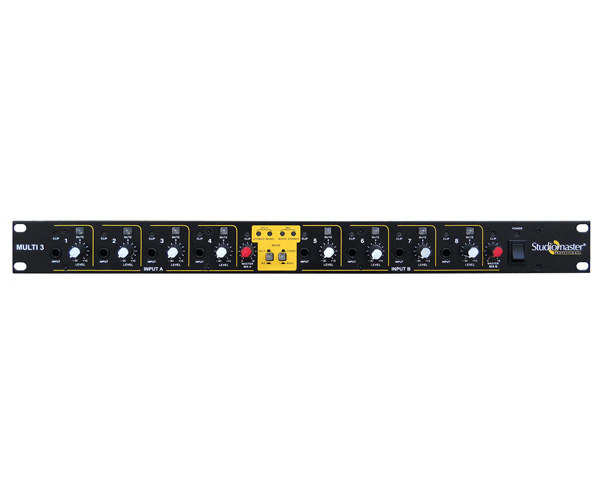

The Studiomaster Professional MULTI 3 is a high quality Splitter/mixer designed to suit the needs of fixed installations as well as live sound re-inforcements.

  • 10 balanced Inputs & Outputs.
  • 4 modes of operation:
    Stereo Mix - 2 X (4 IN / Mix Out + 4 Individual Channel out).
    Mono Mix - 8 IN / 2 Mix Out + 8 Individual Channel out.
    Stereo Split - 2 IN / 10 Out.
    Mono Split - 1 IN / 10 Out.
  • ¼” Stereo jack inputs on each channel with level control.
  • 15dB gain on each channel.
  • Self illuminated mute switches on each channel.
  • Clip LED for all inputs.

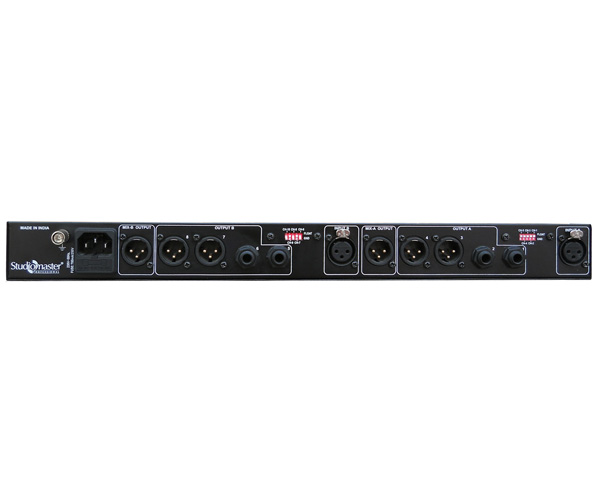

  • Individual Outputs: Four ¼’’ Stereo Jacks & Four XLR.
  • Balanced inputs/ outputs & master control for MIX A & B.
Model Multi 3
Input Sensitivity 0dBu
Input Impedance > 20 K Ω
Output Impedance < 50 Ω
Maximum Output level +21 dBu
Frequency Response 20Hz – 20KHz (+/-0.5 dB)
THD < 0.01 %
Power Supply 150V-240V AC/50Hz
Dimensions (W x D x H)mm 482 x 120 x 44.2 (1U)
Net Weight (Kgs.) 2.1
