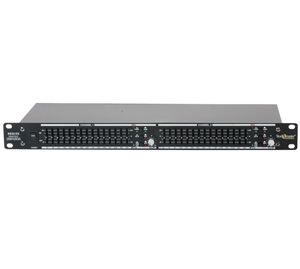

The Studiomaster Professional SEQ 152 is a professional 15-Band graphic equalizer that goes on an extra mile to make sure your sound output is a class apart.

  • Professional Dual 15-Band stereo graphic equalizer with Constant Q factor.
  • Range setting switchable between 6dB/15dB to give a gradual variation as required.
  • Durable & Accurate 20mm Fader.

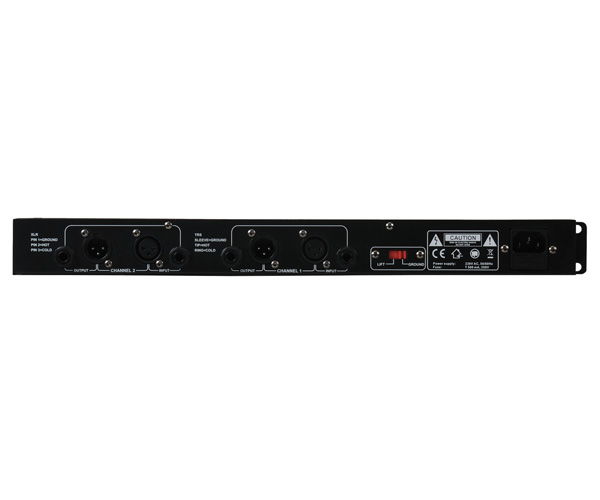

  • Convenient Ground Lift Switch on the Rear Panel.
  • LF Cut & Bypass Switches.
  • Balanced & Unbalanced I/O Connectors.
Input Impedance Balanced 20K Ω
Output Impedance Balanced 600 Ω
Input Output Connectors XLR & TRS
Frequency Response 20Hz-20 KHz
EQ Center Frequency 25Hz, 40Hz, 63Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1KHz, 1.6KHz, 2.5KHz, 4 Khz, 6.3KHz,10KHz, 16KHZ
EQ Cut / Boost Switchable to ± 6dB & ±15dB
Sub Woofer Frequency -
Low Cut -3dB@30Hz
S/N Ratio >90dB
THD 0.05%
Power Supply 230V AC / 50Hz
Dimensions (W x D x H)mm 483 x 170 x 44.5 (1U)
Net Weight (Kgs.) 2.7
