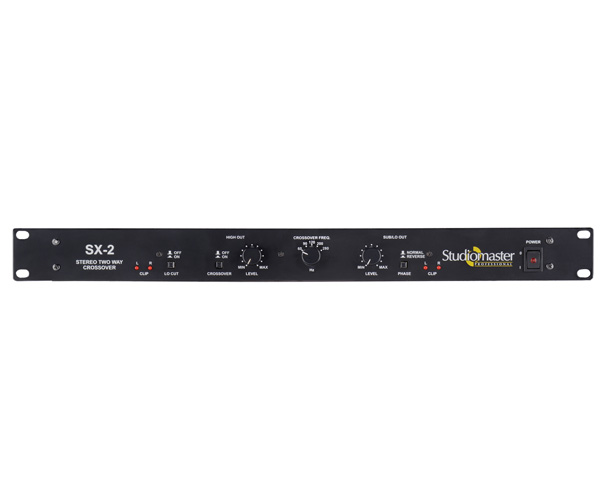

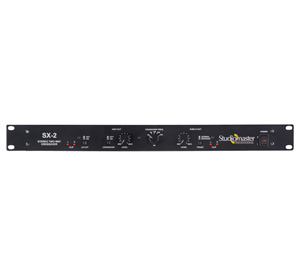

The Studiomaster Professional SX 2 is a 2 way stereo Active crossover.

  • 18dB / Octave Slope.
  • Crossover Selectable Frequency: 60, 90, 120, 200 & 280Hz
  • Individual output control for both frequency bands.
  • Clip LED, Phase Reverse, Low Cut & Bypass Switch.

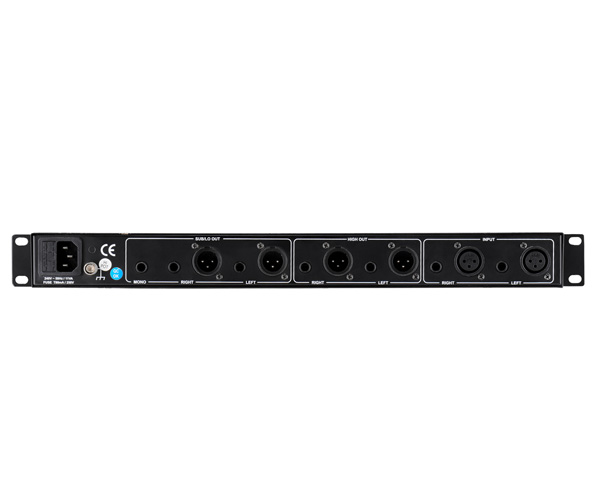

  • Input & Output Connectors: XLR & 1/4" TRS Jack.
Input Impedance 20K Ω , Balanced
Output Level/Impedance 0.775V/600 Ω , Max 7V Balanced
S/N ratio 90dB
Crossover frequency range 60Hz, 90 Hz, 120Hz,200Hz, 280Hz
THD <0.1%
Low Cut -3dB@50 Hz
Input sensitivity 0dBu
Slope (Low, Mid, High 18dB/octave
Subwoofer slope -
Power supply 230 V / 50 Hz
Dimension (W X D X H)mm 482 x 132 x 44 (1U)
Net Weight (Kgs.) 2.4
